Metrology-grade

Multi-Functional

Multi-line Laser

[Pre-order] Revopoint MetroX: Blue Laser Line and Full-field Structured Light

Sale price$999.00
5% OFF
Code: METROX5

Ships from 12.7
ꔷ 4 Flexible Scanning Modes
ꔷ Metrology-grade Accuracy: Up to 0.03 mm
ꔷ Volumetric Accuracy: Up to 0.03 mm + 0.1 mm × L(m)
ꔷ Up to 7,000,000 Points/s in Full-field Structured Light Mode
ꔷ Up to 800,000 Points/s in Multi-line Laser Mode


SET: MetroX Standard Edition

Take a Closer Look

MetroX 3D Scanner
14 Blue Laser Cross Lines
7 Blue Laser Parallel Lines
62 Line Blue Full-field Structured Light
Automated Turntable Scanning Mode

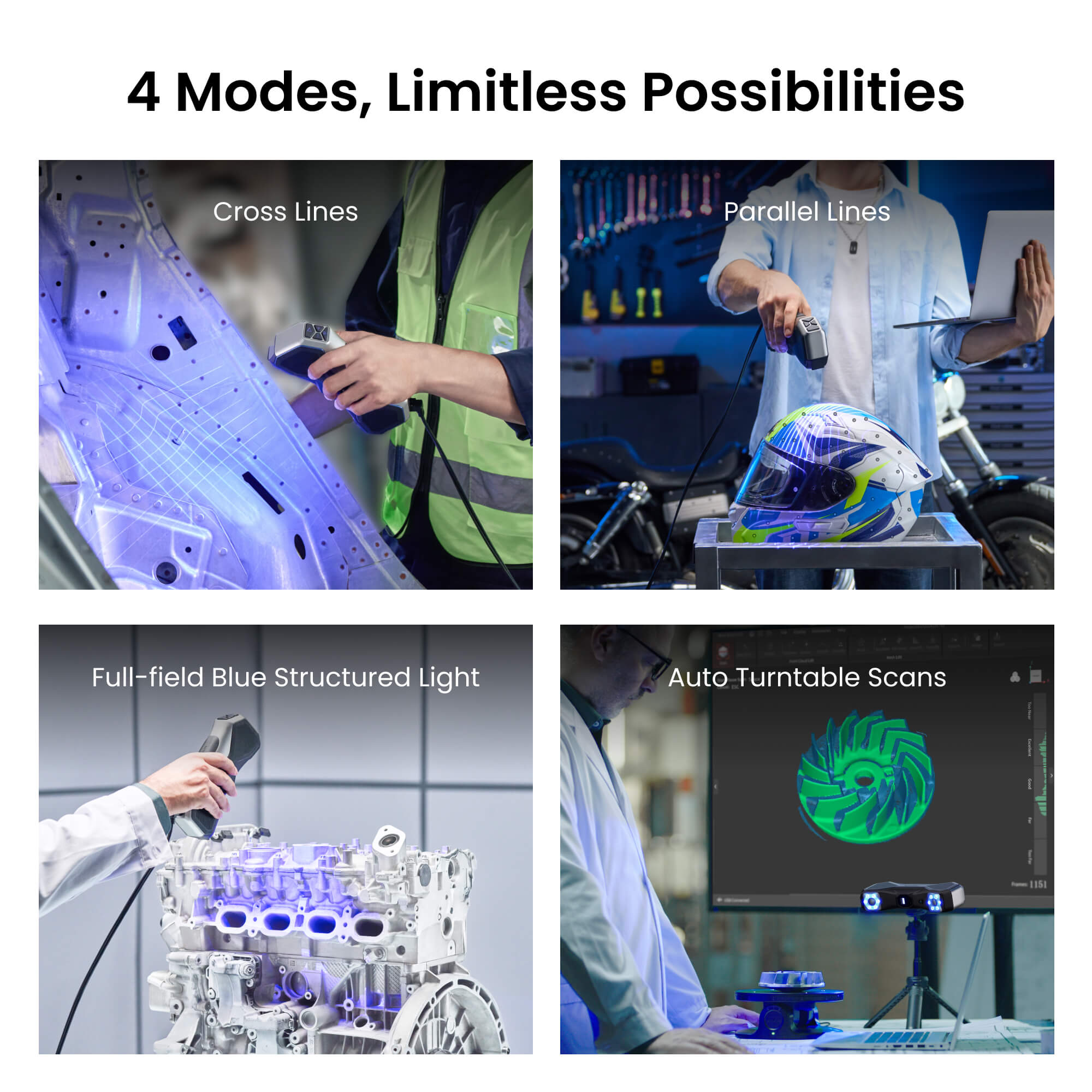

Powerful Blue Laser Scans
Powerful Blue Laser Scans

Cross Lines

Up to 800,000 points per second with 14 crossed blue laser lines.

Parallel Lines

Capture objects with 7 high-powered parallel blue laser lines.

Full-field Blue Structured Light

Get it scanned fast at up to 7 million points per second using 62 lines of structured blue light.

Auto Turntable

One-click scans with the Dual-axis Turntable, Revo Scan, and MetroX working in unison.

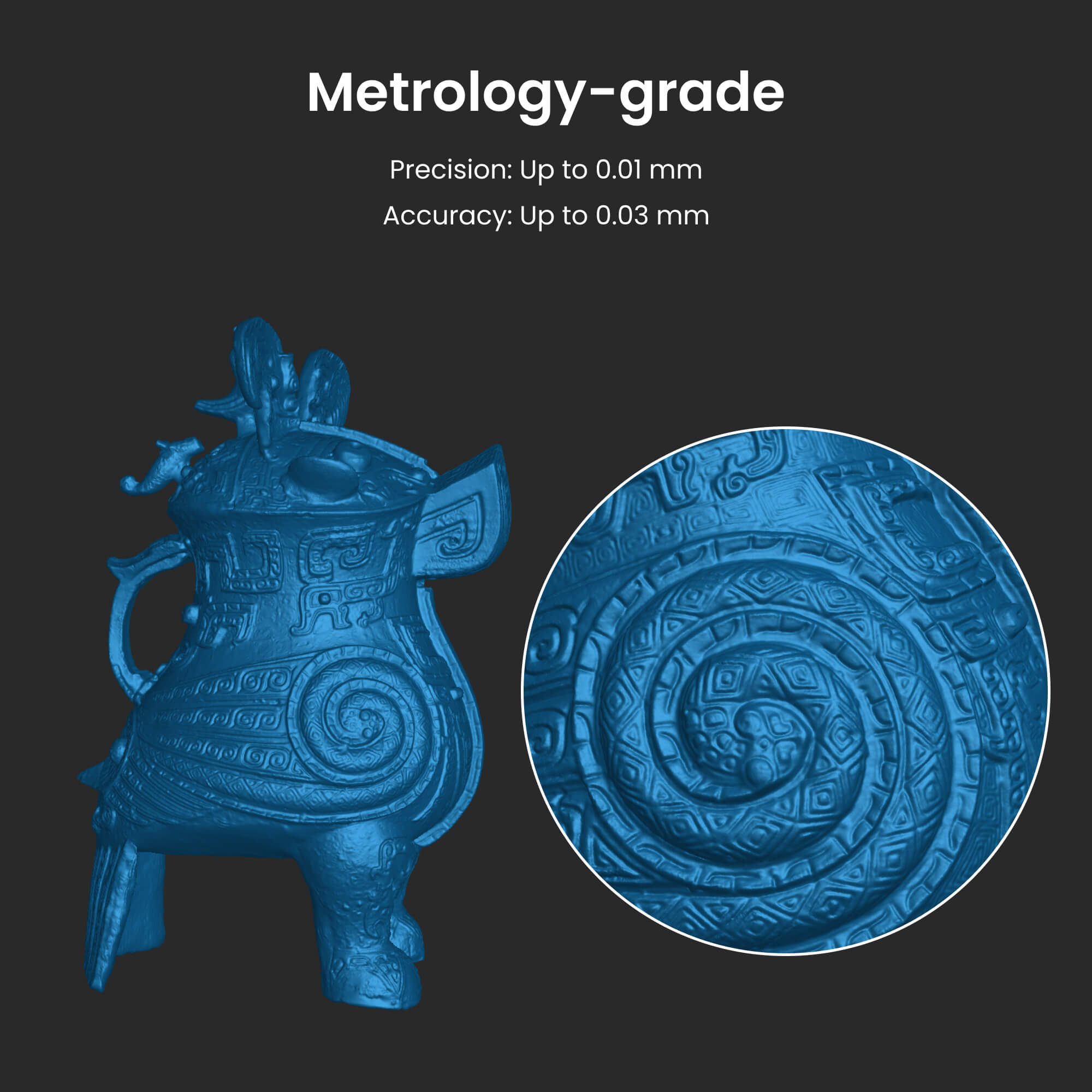

Metrology-grade Accuracy

Precision: Up to 0.01 mm
Accuracy: Up to 0.03 mm

Flexible Single Capture Area

160 x 70 mm at 200 mm
320 x 215 mm at 400 mm

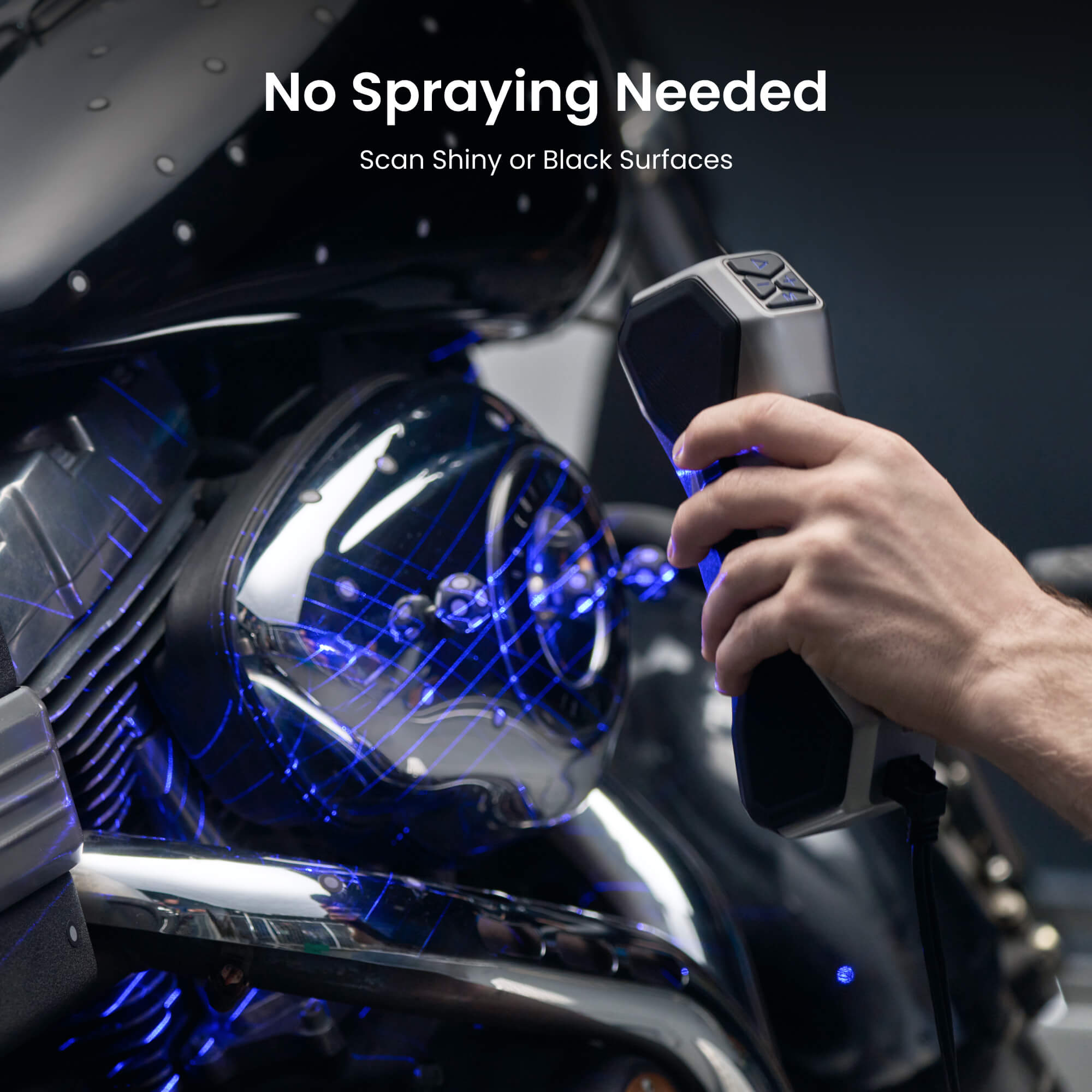

No Spray Needed

Scan Shiny or Black Surfaces

Get Scans Done Fast

Up to 7,000,000 Points/s in Full-field Structured Light Mode

Up to 800,000 Points/s in Multi-line Laser Mode

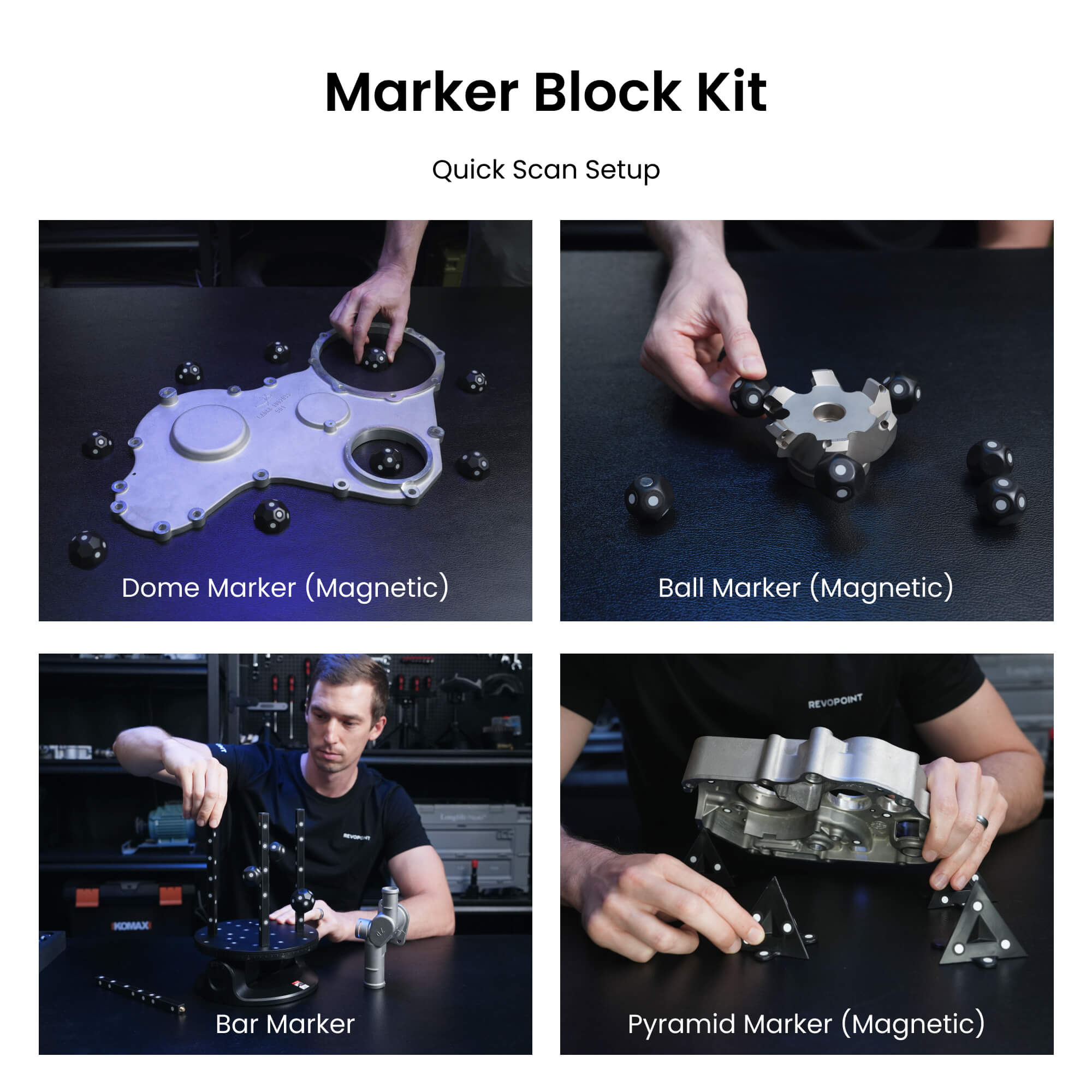

Marker Blocks Help Scan Faster

This handy set of shaped marker blocks makes setting up featureless object scans much faster.

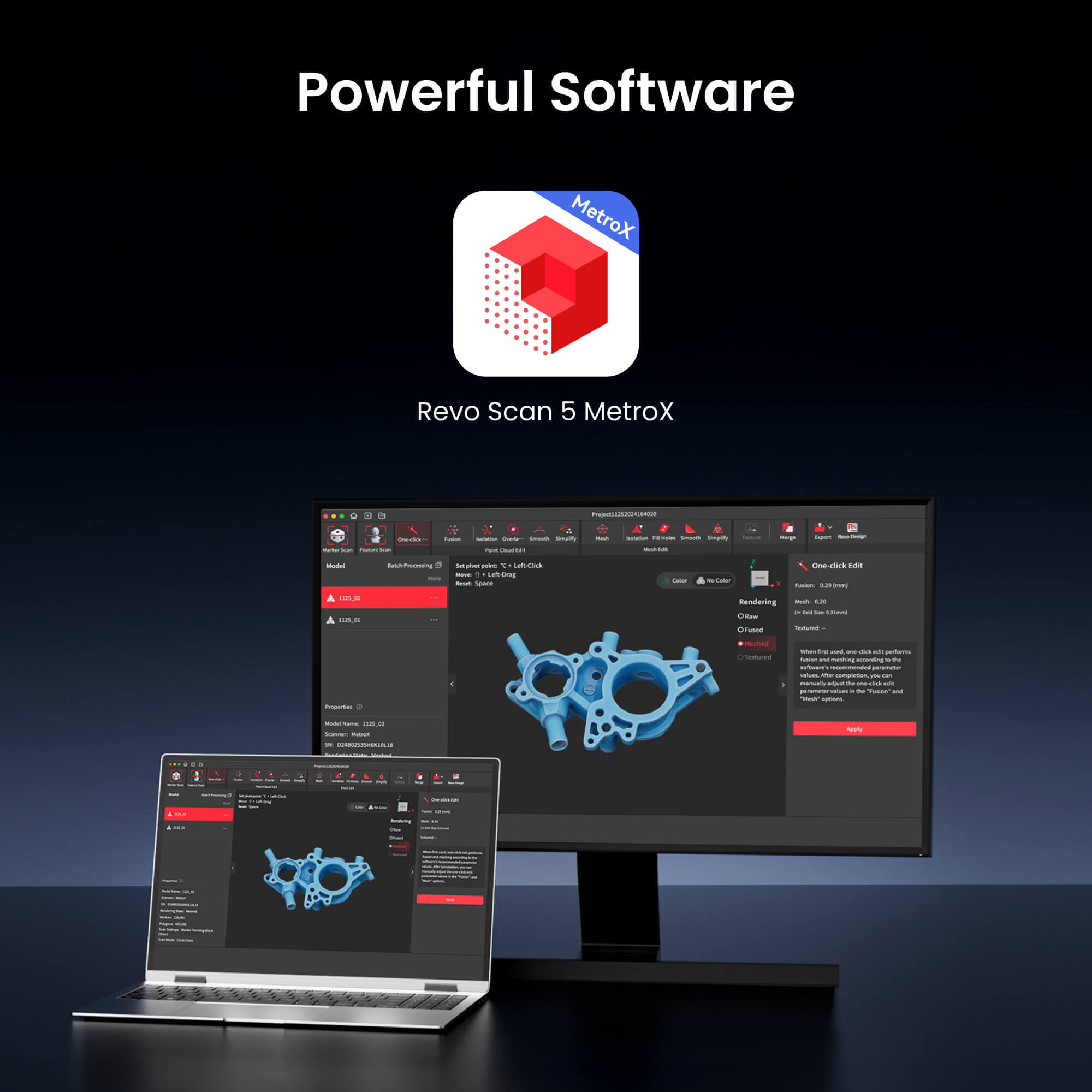

Powerful Software Revo Scan 5

Revo Scan does everything from point cloud creation to fusion, meshing, editing, merging, importing, and exporting.

Easy to Control

4 Buttons

HD RGB Camera

Create Vibrant 3D Models

See MetroX’s Amazing Scans

Explore More >

What’s in the Box

Standard Edition

MetroX 3D Scanner & Wrist Strap

Tripod & Scanner Cradle

2m Power Adapter*

Dual-axis Turntable

Calibration Board

Markers(6 mm) × 500

USB Type-A toType-C Cable

USB Type-C to Type-A Adapter

Carrying Case

Sample Bust

Quick Start Guide Certificate &Warranty Card

Standard Edition

*The power adapter may vary depending on the country or region.

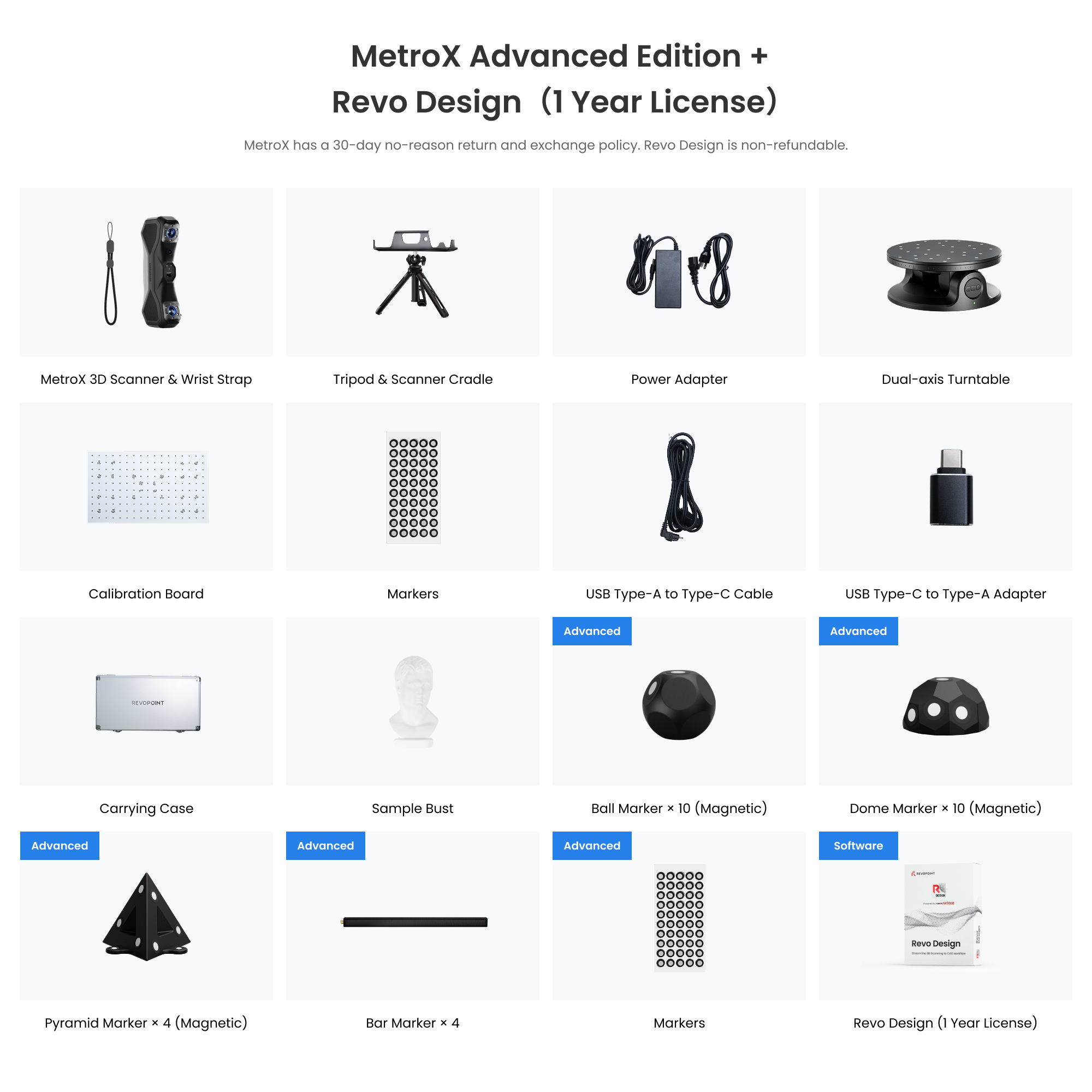

Advanced Edition

Standard Edition + Marker Block Kit

MetroX 3D Scanner & Wrist Strap

Tripod & Scanner Cradle

2m Power Adapter

Dual-axis Turntable

Calibration Board

Markers(6 mm) × 500

USB Type-A toType-C Cable

USB Type-C to Type-A Adapter

Carrying Case

Sample Bust

Quick Start Guide Certificate &Warranty Card

Ball Marker × 10 (Magnetic)

Dome Marker × 10 (Magnetic)

Pyramid Marker × 4 (Magnetic)

Bar Marker × 4

Markers(6 mm) × 500

Standard Edition + Marker Block Kit

*The Marker Block Kit simplifies the workflow by making it much quicker to place markers when scanning featureless objects.

Specifications

Name

MetroX

Compatible Operating Systems

Windows 10/11 (64-bit), macOS 11.0 or better

Scanning Type

Handheld and Desktop

Built-in Chip Computing

Depth Map Computing

Technology

Multi-line Laser Scan and Full-field Structured Light Scan

Buttons

4

Scannable Object Size

Small to Medium

Outdoor Scanning

No

Single-frame Precision, up to

0.01 mm

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Single-frame Accuracy, up to

0.03 mm

Ready to Print 3D Models

Yes

Volumetric Accuracy

0.03 mm + 0.1 mm × L (m)

L is the length of the object

Fused Point Distance, up to

0.05 mm

Working Distance

200 ~ 400 mm

Connector Type

USB Type-C

Single Capture Area at Nearest Distance

160 x 70 mm at 200 mm

Power Requirements

DC 12V, 3A

Single Capture Area at Furthest Distance

320 x 215 mm at 400 mm

3D Light Source

14 Blue Cross Laser Lines

7 Blue Parallel Laser Lines

62 Line Blue Full-field Structured Light

Angular Field of View (H x V)

43 × 33°

Dimensions (L x W x H)

209 × 88 × 44 mm

Maximum Scan Volume

1 × 1 × 1 m

Minimum Scan Volume

10 × 10 × 10 mm

User Recalibration

Yes

Scanning Speed, up to

Multi-line Blue Laser: 800,000 Points/s

Full Field Blue Light: 7,000,000 Points/s

Special Object Scanning

Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes.

Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.

Depth Camera Resolution, up to

2 Megapixels

RGB Camera Resolution

2 Megapixels

Supported Accessories

Dual-axis Turntable, Marker Block Kit

Color Scanning

Only in Auto Turntable Mode

CPU

4 core ARM, 2.0 GHz

Tracking Methods

Feature, Marker, Global Marker

Fill Lights

12 Blue LEDs

Minimum PC Requirements(*4)

macOS

CPU: M1 Pro/Max/Ultra

RAM ≥ 16GB

Windows

CPU: Intel i7 10th Gen 10700 or

AMD Ryzen 7 5800

RAM ≥ 32GB

GPU (Optional):

NVIDIA GeForce RTX 3050 (8GB)

Recommended PC Requirements

macOS

CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra

RAM ≥ 24GB

Windows

CPU: Intel i9 12th Gen or

better

RAM ≥ 64GB

GPU:

NVIDIA RTX 4060 (8 GB) or better
