Specification Comparison
3D Scanners
Optical Tracking 3D Scanning Systems
3D Scanner
Tracker
Single-frame Accuracy①
0.02 mm
Fused Point Distance, up to
0.05 mm
Scanning Speed, up to
1,500,000 Point/s
Light Source②
30 Blue Cross Laser Lines
1 Blue Single Laser Line
Working Distance
200 - 400 mm
Single Capture Area at Nearest Distance
160 × 70 mm @ 200 mm
Single Capture Area at Furthest Distance
320 × 215 mm @ 400 mm
Weight
1.2 kg
Dimensions (L × W × H)
295 × 295 × 205 mm
Operating Temperature Range③
0 - 40 ℃
Output Formats
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Material
Frame: Carbon Fiber
Housing: Polycarbonate
Part Size Range (Recommended)
0.01 - 6 m
Volumetric Accuracy (Tracking system)
0.02 mm + 0.04 mm × L (m)
Working Distance
1500 - 4000 mm
Minimum Tracking Frame
1304 × 1067 mm @ 1500 mm
Maximum Tracking Frame
3260 × 2845 mm @ 4000 mm
Tracking Volume
11 m³
Weight
2.0 kg
Dimensions (L × W × H)
686 × 106 × 111 mm
Tracking Band
Infrared
User Recalibration
Auto Calibration
Tracker has an auto gimbal calibration system. The scanner requires manual calibration.
Supported Accessories
Calibration Board, Calibration Pole, Auto Calibration Dual-axis Gimbal, Anchor Block, Large Turntable

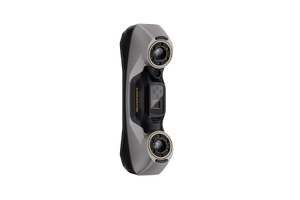

MetroY Pro

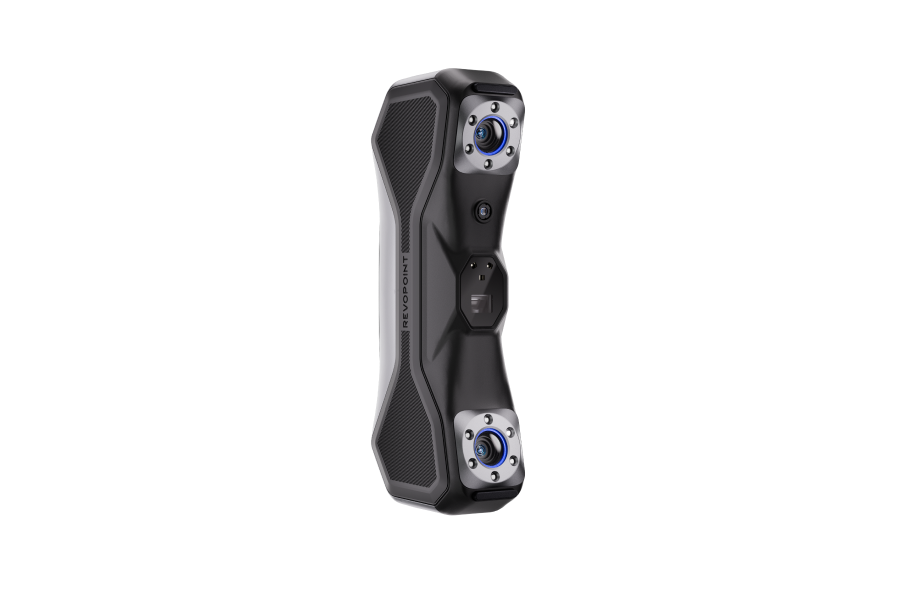

MetroX

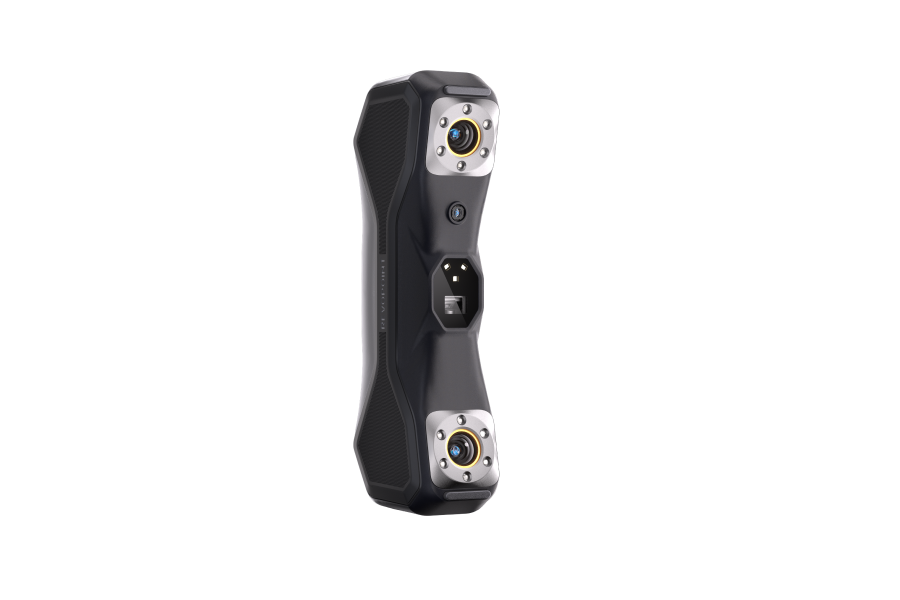

MetroX Pro
Scanning Type
Handheld
Handheld and Desktop
Handheld and Desktop
Technology
Multi-line Laser Scan and Full-field Structured Light Scan
Multi-line Laser Scan and Full-field Structured Light Scan
Multi-line Laser Scan and Full-field Structured Light Scan
Application
Small to Medium
Small to Medium
Small to Medium
Single-frame Precision, up to*
0.01 mm
0.01 mm
0.01 mm
Single-frame Accuracy, up to*
0.02 mm
0.02 mm
0.02 mm
Photogrammetric Length Accuracy
0.02 mm + 0.04 mm × L (m), L is the length of the object.
Volumetric Accuracy: 0.025 mm + 0.05 mm × L (m) L is the length of the object.
0.02 mm + 0.04 mm × L (m), L is the length of the object.
Fused Point Distance, up to
0.05 mm
0.05 mm
0.05 mm
Working Distance
200 ~ 400 mm
200 ~ 400 mm
200 ~ 400 mm
Single Capture Area at Nearest Distance
152 × 138 mm at 200 mm
160 × 70 mm at 200 mm
160 × 70 mm at 200 mm
Single Capture Area at Furthest Distance
332 × 276 mm at 400 mm
320 × 215 mm at 400 mm
320 × 215 mm at 400 mm
Angular Field of View, HxW
49 × 38°
43 × 33°
43 × 33°
Minimum Scan Volume
10 × 10 × 10 mm
10 × 10 × 10 mm
10 × 10 × 10 mm
Maximum Scan Volume
1 × 1 × 1 m
1 × 1 × 1 m
1 × 1 × 1 m
Scanning Speed, up to
Multi-line Laser Scan: 2,000,000 Points/s, Full-field Structured Light Scan: 7,000,000 Points/s
Multi-line Laser Scan: 800,000 Points/s Full-field Structured Light Scan: 7,000,000 Points/s
Multi-line Laser Scan: 2,000,000 Points/s, Full-field Structured Light Scan: 7,000,000 Points/s
Depth-camera Resolution,up to
N/A
2 Megapixels
No publicity
RGB-camera Resolution
2 Megapixels
2 Megapixels
2 Megapixels
Color Scanning
Only in Auto Turntable Mode
Only in Auto Turntable Mode
Only in Auto Turntable Mode
Tracking Methods
Marker, Global Marker, Feature
Feature, Marker, Global Marker
Feature, Marker, Global Marker
Outdoor Scanning*
No
No
No
3D Light Source*
34 Blue Cross Laser Lines, 15 Blue Parallel Laser Lines, 1 Blue Single Laser Line, 62 Line Blue Full-field Structured Light
14 Blue Cross Laser Lines 7 Blue Parallel Laser Lines 62 Line Blue Full-field Structured Light
30 Blue Cross Laser Lines, 15 Blue Parallel Laser Lines, 62 Line Blue Full-field Structured Light
IR Fill Lights*
N/A
12 Blue LEDs
12 Blue LEDs
White LED Flash*
N/A
N/A
N/A
Position Sensors
N/A
N/A
N/A
CPU
4 core ARM, 2.0 GHz
4 core ARM, 2.0 GHz
4 core ARM, 2.0 GHz
Built in Chip Computing
Depth Computing
Depth Map Computing
Depth Map Computing
Storage
N/A
N/A
N/A
Memory (RAM)
N/A
N/A
N/A
Touch Screen
N/A
N/A
N/A
Buttons
4
4
4
Minimum PC Requirements*
macOS: CPU: M3 Pro/M4, RAM ≥ 18GB; Windows: CPU: Intel i7 13th Gen or AMD Ryzen 7 5800, RAM ≥ 32GB, GPU: NVIDIA GeForce RTX 3060 (8GB); Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration.
macOS: CPU: M1 Pro/Max/Ultra, RAM ≥ 16GB; Windows: CPU: Intel i7 13th Gen or AMD Ryzen 7 5800, RAM ≥ 32GB, GPU: NVIDIA GeForce RTX 3060 (8GB); Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration.
macOS: CPU: M3 Pro/M4, RAM ≥ 18GB; Windows: CPU: Intel i7 13th Gen or AMD Ryzen 7 5800, RAM ≥ 32GB, GPU: NVIDIA GeForce RTX 3060 (8GB); Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration.
Recommended PC Requirements*
macOS: CPU: M4 Pro or better, RAM ≥ 24GB; Windows: CPU: Intel i9 12th Gen or better, RAM ≥ 64GB, GPU: NVIDIA RTX 4060 (8 GB) or better
macOS CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 64GB GPU: NVIDIA RTX 4060 (8 GB) or better
macOS: CPU: M4 Pro or better, RAM ≥ 24GB; Windows: CPU: Intel i9 12th Gen or better, RAM ≥ 64GB, GPU: NVIDIA RTX 4060 (8 GB) or better
Mobile Requirements
N/A
N/A
N/A
Compatible Systems
Windows 10/11 (64-bit), macOS 11.0 or better
Windows 10/11 (64-bit), macOS 11.0 or better
Windows 10/11 (64-bit), macOS 11.0 or better
Native System
N/A
N/A
N/A
Output File Formats
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Ready to Print 3D Models
✔
✔
✔
Wi-Fi
6
N/A
N/A
Bluetooth
N/A
N/A
N/A
Connector Type
USB Type-C to Type-C
USB Type-C
USB Type-C to Type-C
Power Source
DC 12V, 3A
DC 12V, 3A
DC 12V, 3A
Battery
N/A
N/A
N/A
Scanner Weight
450 g
508 g
508 g
Dimensions(L x W x H)
211 × 94 × 47 mm
209 × 88 × 44 mm
209 × 88 × 44 mm
Special Object Scanning
Please use scanning spray when scanning transparent or specular surfaces.
Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
User Recalibration
Yes
Yes
Yes
Supported Accessories
Marker Block Kit, Mobile Kit (3rd Gen), Dual-axis Turntable
Dual-axis Turntable, Marker Block Kit
Dual-axis Turntable, Marker Block Kit
