MIRACO PLUS

MIRACO Plus

First All-in-one
Photogrammetric Metrology
and Scanning

Scan, Measure, Innovate

All-in-one Scanning

Capture Big to Small Objects

With the MIRACO Plus, switch freely between capture modes for total scanning flexibility. Near mode captures intricate details in specific areas or small objects, while Far mode excels at quickly capturing entire objects.

All-in-one Workflow

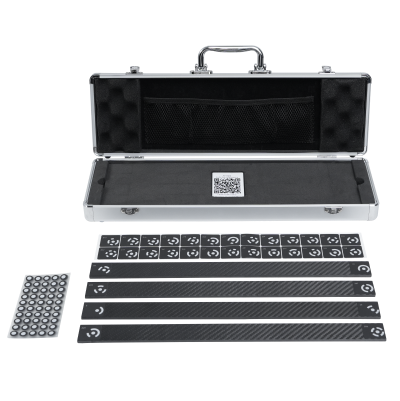

Capture and create photogrammetric models all one device with the Photogrammetric Metrology Kit's (PMK) two sets of coded targets (magnetic and sticky), 4 magnetic carbon fiber scale bars, and the MIRACO Plus's 48-megapixel RGB camera, powerful hardware, and advanced algorithms.

STEP 1 ： Prepare

Place the scale bars, coded targets, and markers on or around the object's surface.

STEP 2 ： Shoot

Shoot photos of the object at different heights and angles till fully captured.

STEP 3 ： Calculate and Capture Point Clouds

Calculate the markers, then capture the point clouds all on MIRACO Plus 3D scanner .

STEP 4 ： Process and Export

Process, edit, and then transfer to a PC.

Metrology-grade 3D Measurement

MIRACO Plus's photogrammertic function it can create metrology-grade 3D models of large objects such as automobiles, ship or plane parts, and machinery. Achieve an impressive length measurement accuracy of up to 0.02 mm + 0.05 x L (m).

Even Better Detail Capture

Single-frame Accuracy Up to 0.04 mm

Capture even finer details with the MIRACO Plus's 20% greater accuracy, guaranteed within 20 microns by its high-precision calibration board.

Zoom for Details

Reduce noise, increase the smoothness, and capture even finer details with MIRACO Plus's 1.5x and 2x infrared optical zoom, creating higher resolution structured light.

Two Capture Modes

Single-shot Mode

Single-shot mode's single-frame capture makes it easier to scan in hard-to-maneuver environments and reduces point cloud overlap for increased accuracy.

Continuous Mode

Efficiently capture objects at fast up to 20 fps scanning speeds.

Your Scanning Portal

2K AMOLED 180° Flip Touch Screen

See your scans with crystal clarity on MIRACO Plus's 6” 2k backlit AMOLED touch-sensitive screen. Its 180° adjustable screen allows easy viewing from any angle and can flipped for selfie scans.

180° Adjustable Screen

Screen Size

Powerhouse in Your Hands

8-core 2.4GHz Processor

256 GB Hard Drive

Up to 8000 Frames

for Color Scans

Up to 10000 Frames

for Non-color Scans

Long Scans, Fast Charging

Recharge MIRACO Plus to 80% in only 35 mins with 65W fast charging.

The MIRACO Plus's 5000mAh battery offers up to 2 hours continuous scanning

* MIRACO Plus’s battery is covered under a 2-year warranty.

No Cables, No PC Needed

Simple Project Transfers

Transfer your scans quickly and conveniently over MIRACO Plus’s lightning-fast Wi-Fi 6 or easy-to-connect USB Type-C connection.

Screen Mirroring

Hook MIRACO Plus up to TVs or monitors through a USB-Type C to HDMI adapter or a DP port for convenient 3D model checks or presentations.

Powerful Built-in Software

Do everything from scanning to processing, editing, and merging on the MIRACO Plus for a truly versatile scanning experience.

One-tap Edits

Point Cloud Editing

Mesh Editing

Tracking Methods for Every Object

Hole Filling

Export in PLY, OBJ, STL, ASC, 3MF, GLTF, or FBX

The Buzz on MIRACO Plus

“MIRACO Plus 3D Scanner,what the company claims to be the “world’s first” is a comprehensive 3D scanning and photogrammetric metrology solution and features advanced technology to capture large objects with high accuracy...”

“The MIRACO Plus 3D Scanner stands out for its high-resolution photogrammetric metrology, which significantly improves the accuracy of coordinate measurements for large objects...”

“Revopoint,has released its first metrology-grade photogrammetric system, consisting of the MIRACO Plus 3D Scanner and a Photogrammetric Metrology Kit – offering high-accuracy 3D measurements for a diverse array of objects...”

Multiple Applications

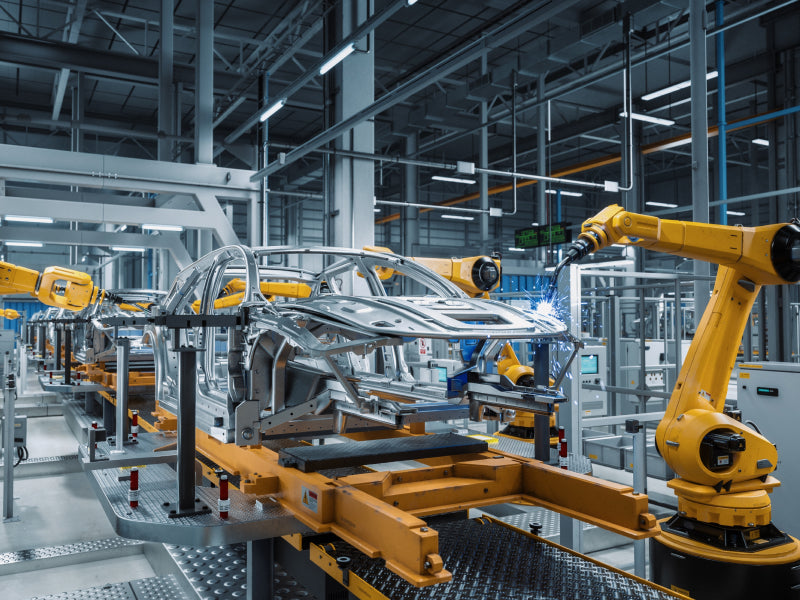

Industrial Manufacturing

Boost assembly precision, efficiency, and product quality with on-the-line scanning with accurate 3D measurements of large items. Boost assembly, production efficiency, and product quality with production line scans.

Additive Manufacturing

MIRACO Plus can quickly scan large, medium, and small objects to create perfect digital twins ready for replication with 3D printers.

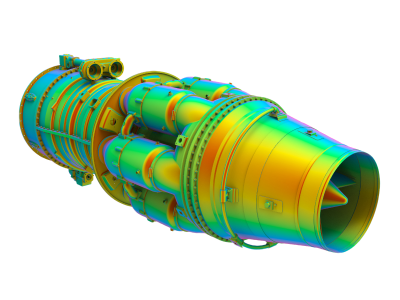

Reverse Engineering

With MIRACO Plus's new photogrammetric feature, you can create metrology-grade 3D models of large objects that ensure accuracy during reverse engineering processes.

Industrial Design

Rapidly prototype large products using the generated data to refine appearance and structure, enhance design accuracy and efficiency, and shorten the design cycle. Verify and improve the final product to ensure it meets design expectations.

What’s in the Box?

MIRACO Plus 3D Scanner

Scale Bar × 4

Coded Targets(Sticky) × 208

Coded Target(Magnetic) × 208

Tripod

Mini Turntable,Sample Bust &Turntable Topper

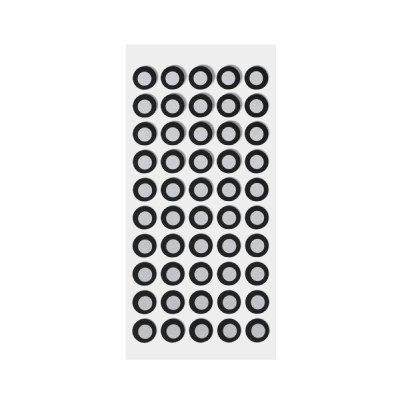

Markers(6 mm) × 700

USB Type-C to HDMI Adapter

Far-mode Calibration Board

x 4
Large Calibration-board Sheet

Near-mode Calibration Board

Magic Mat x 2

65W Dual USB Type-C Port
Power Adapter

USB Type-A to Type-C Adapter

Wrist Strap

Scanner Bag

1. The adapter may vary depending on the country or region.

2. Two Coded Target sets (Magnetic & Sticky) 208 in each.

3. Don't combine the Coded Targets sets or mix them with Coded Targets from other PMK sets.

Specifications

Product Name

MIRACO Plus 3D Scanner

Technology

Quad-camera, Infrared Structured Light

with Optical Zoom, and Ultra-resolution

Photogrammetric Metrology

Single-frame Accuracy

Up to 0.04 mm

Single-frame Precision

Up to 0.02 mm

Photogrammetric Length Accuracy

0.02 mm + 0.05 mm x L (m)

（L is the maximum measuring distance in meters.）

Battery

Internal 5000 mAH

Internal Storage

256 GB eMMC

Memory (RAM)

32 GB DDR4 Memory

Scanning Speed

Up to 20 fps

Fused Point Distance

Up to 0.05 mm

Single Capture Area

at Nearest Distance

28 x 53 mm at 100 mm

Single Capture Area

at Furthest Distance

975 x 775 mm at 1000 mm

Scannint Type

Standalone Handheld and Desktop,

and photogrammetric metrology

Working Distance

100 ~ 1000 mm

Minimum Scan Volume

10 x 10 x 10 mm

Maxmium Scan Volume

4 × 4 × 4 m

Auxiliary Lighting

Infrared Fill Lights,

White Flash LEDs

Angular Field of View(H x V)

Near 40 × 30°,

Far 56 × 42°

CPU

8 core ARM A76 , 2.4 GHz, Mali G52 GPU

Position Sensors

9-axis IMU

Scanner Weight

750 g

Dimensions（L x W x H）

200 x 50 x 110 mm

Tracking Methods

Feature, Marker, Global Marker

Buttons

2

Connector Type

USB Type-C

Power Requirements

DC 7-11V, 5A

Support 65-watt Fast Charging

Wi-Fi

6

Bluetooth

4.1

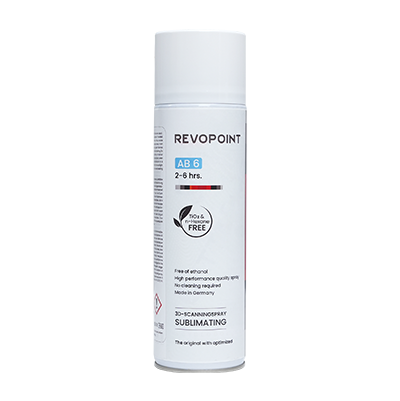

Special Object Scanning

Use scanning spray for transparent,

dark, or highly reflective objects.

RGB Camera Resolution

48 Megapixels

Ready to Print 3D Models

Yes

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

User Recalibration

Yes

Supported Accessories

Large Turntable, Dual-axis Turntable, Large Calibration Board for MIRACO, Power Bank Kit, Photogrammetric Metrology Kit

Compatible Operating Systems

Windows 10/11 (64-bit),

macOS 11.0 or better

Light Type

Class 1 Infrared Light (Eye Safe)

Minimum PC
Requirements for
Post- processing

macOS
CPU: M1 Pro or better; RAM ≥ 8GB
Windows
CPU: Intel i7 12th Gen or better; RAM ≥ 16GB

Recommended PC
Requirements for
Post- processing

macOS
CPU: M3 or better; RAM ≥ 8GB
Windows
CPU: Intel i9 11th Gen or better; RAM ≥ 32GB

Note:
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Outdoor scans should avoid direct sunlight.
3. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
5. The MIRACO series 3D scanners require no PC when scanning. But the PC requirements above should be followed if you connect the MIRACO to Revo Scan (PC) for more operations.
