Photogrammetric Metrology Kit: High-accuracy 3D Measurements (Only Works with MIRACO Plus)
1.Photogrammetric Length Accuracy 0.02 mm + 0.05 mm/m
2.Optimized for Large Objects
3.Capture and Process Photogrammetric Data All on One Device
4.Lightweight and portable
Free shipping for 3D scanners, 3-5 days fast receipt.
Safe and Reliable Payment Methods.
Photogrammetric Metrology Kit
* Only compatible with MIRACO Plus
The Photogrammetric Metrology Kit (PMK) enables the creation of metrology-grade 3D models for
inspection, reverse engineering, and other measurement applications. The MIRACO Plus 3D scanner
works with the PMK to provide an all-in-one capture and processing device.
Lightweight and
Portable Kit
Length Measurement Accuracy
0.02mm＋0.05 mm/m
Easily Handle
Large-Size Objects
Capture and Process
Photogrammetric
Data All on One Device
Features
Metrology-grade Accuracy

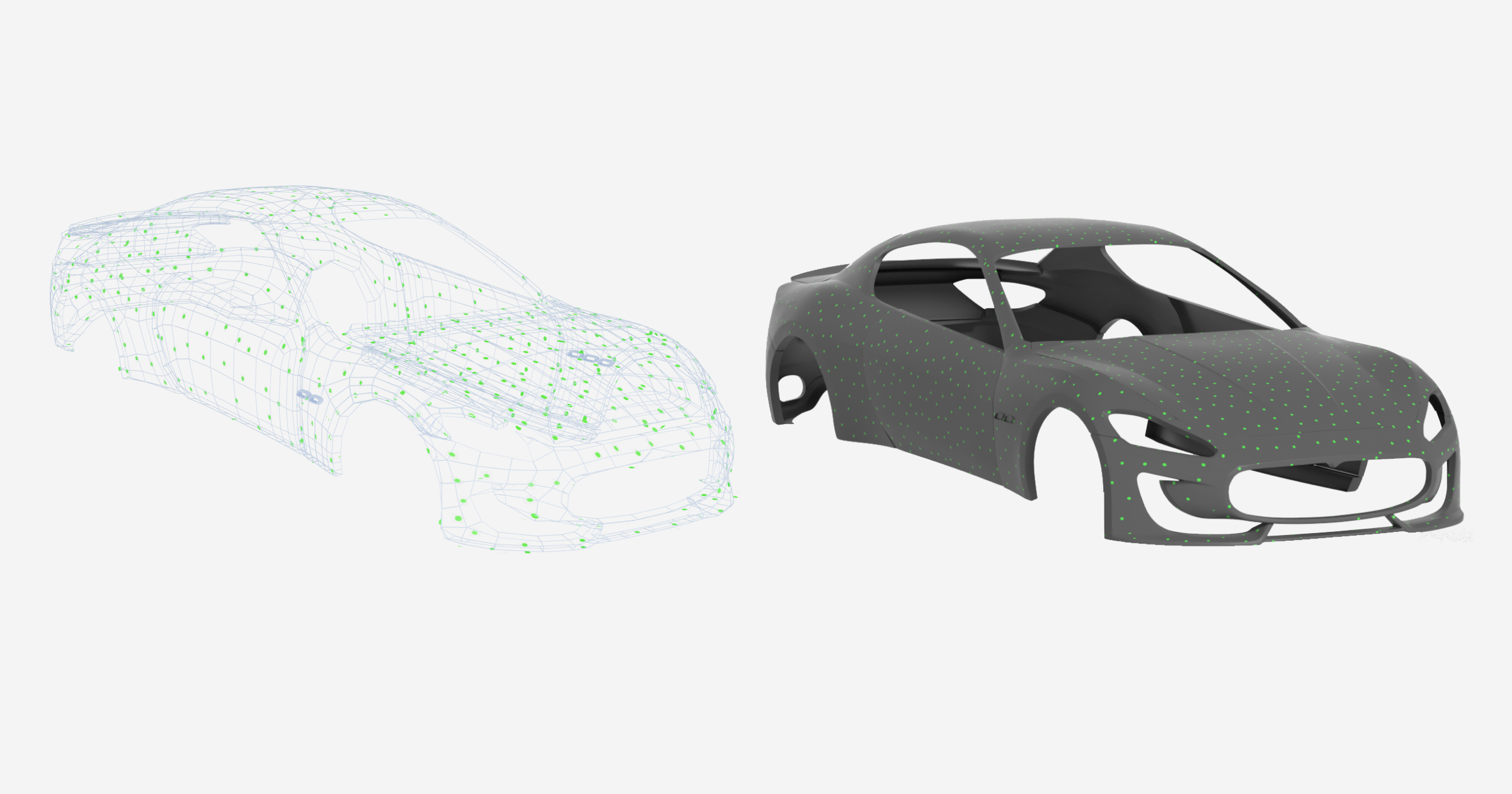

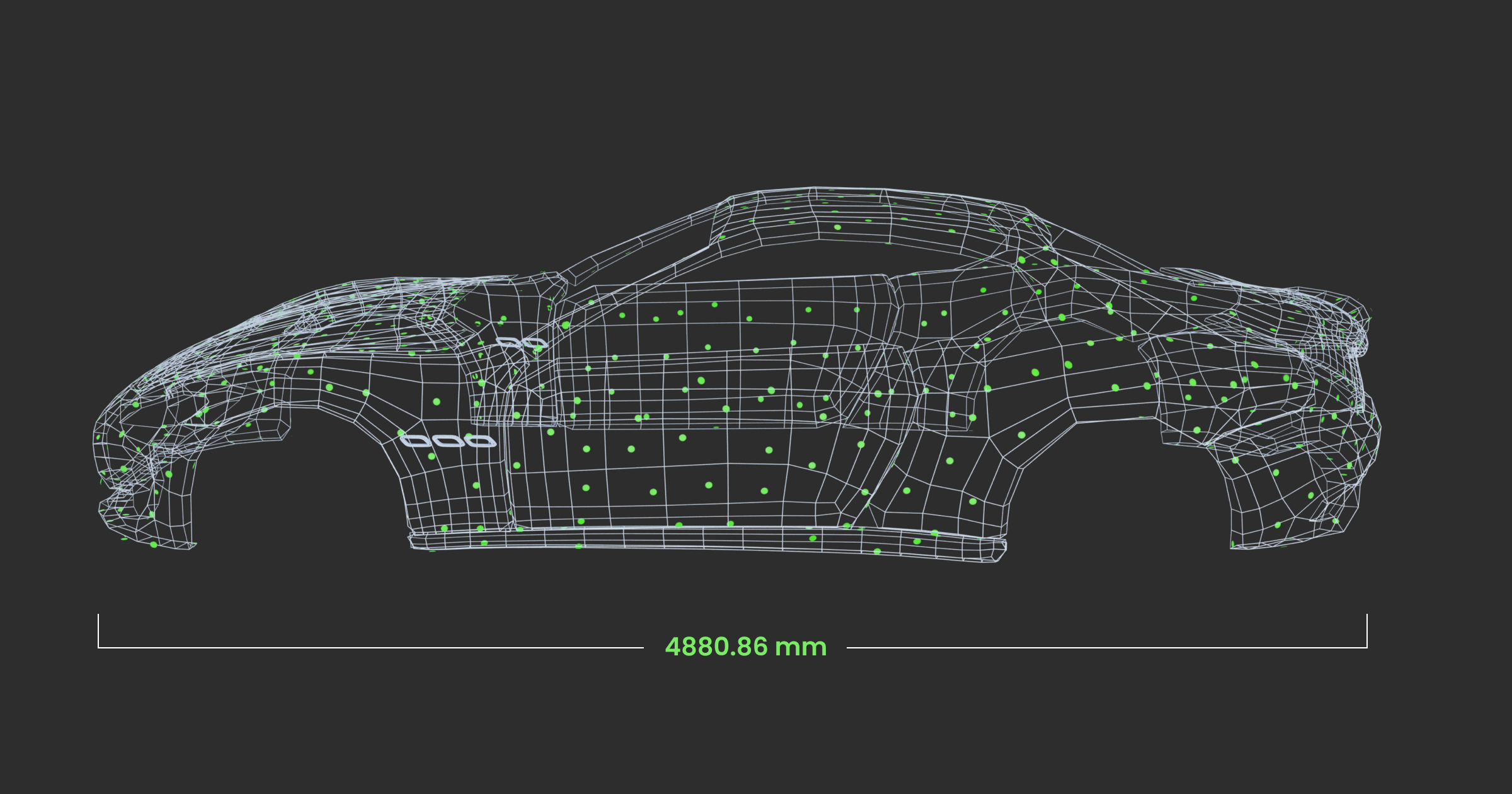

Create metrology-grade 3D models of large objects such as automobiles, ship or plane parts, and machinery. Achieve an impressive photogrammetric length of up to 0.02 mm + 0.05 mm/m.
Features
All-in-one workflow
The PMK and the MIRACO Plus combine to create a seamless photogrammetric capturing and processing experience using the MIRACO Plus's 48-megapixel RGB camera, powerful hardware, and advanced algorithms.
Features
Lightweight and Portable

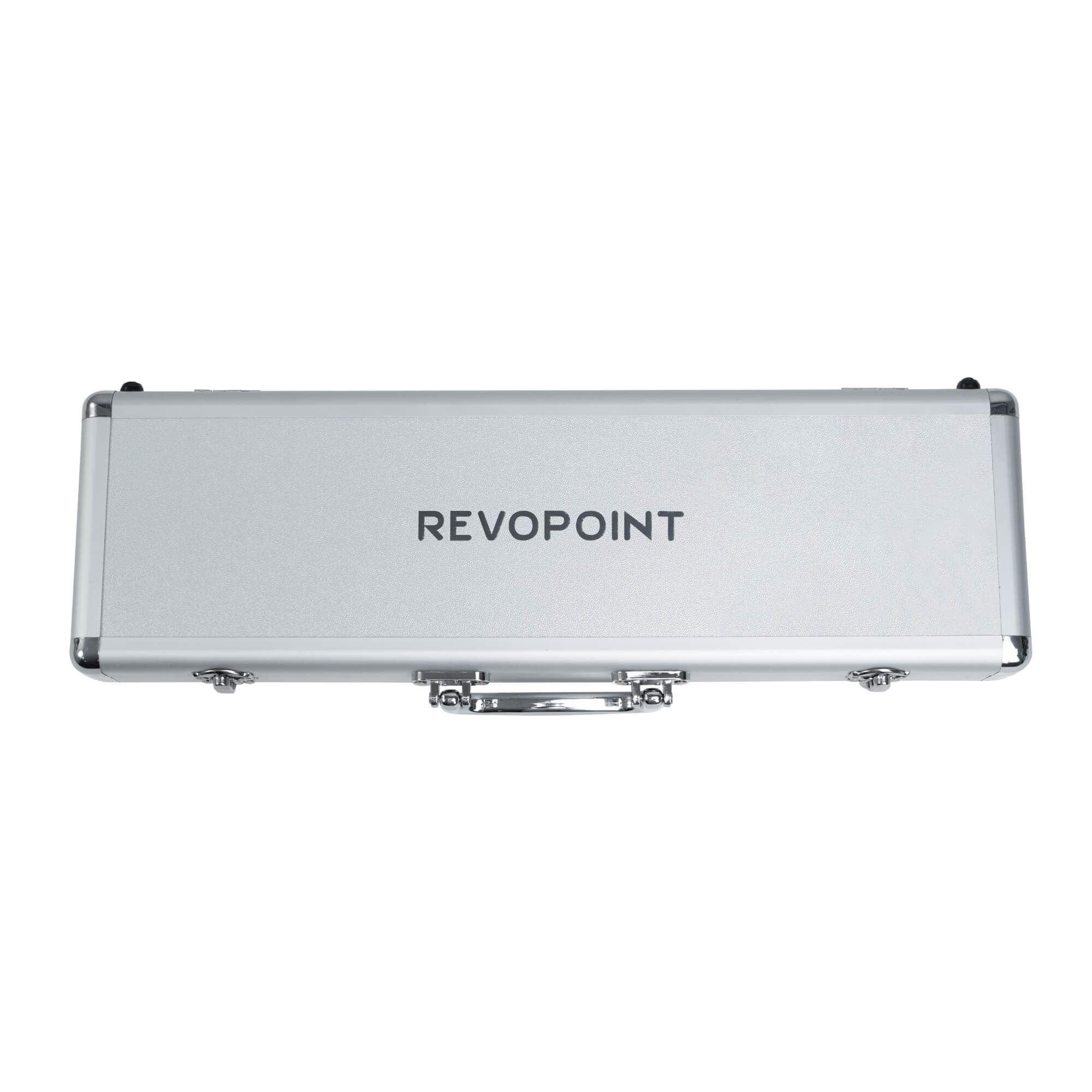

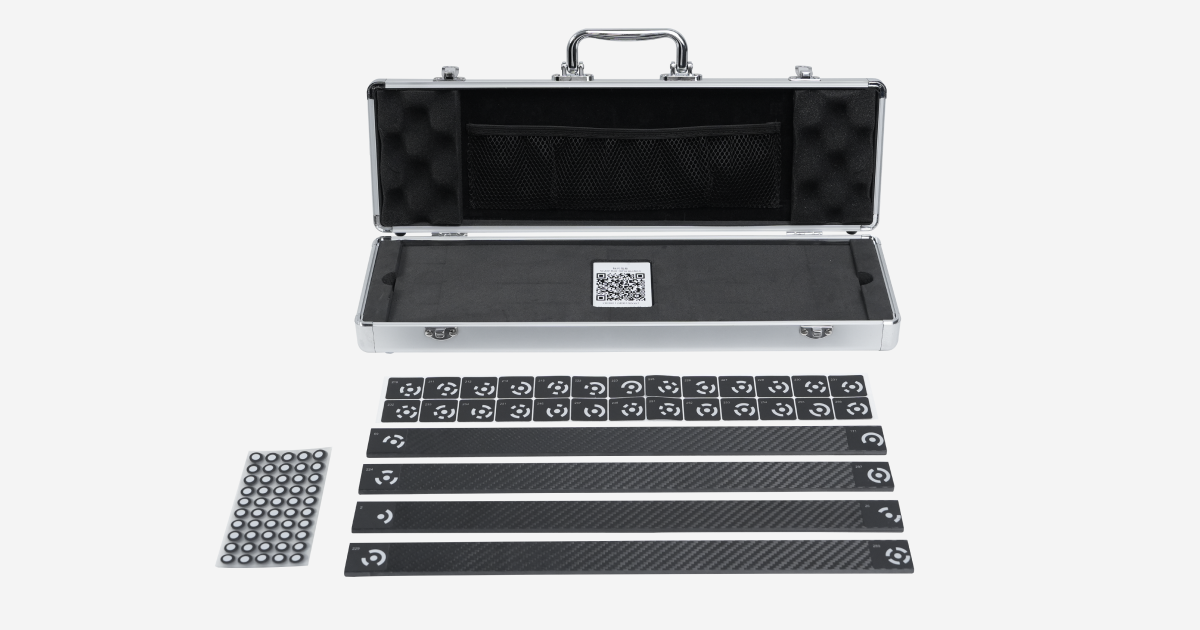

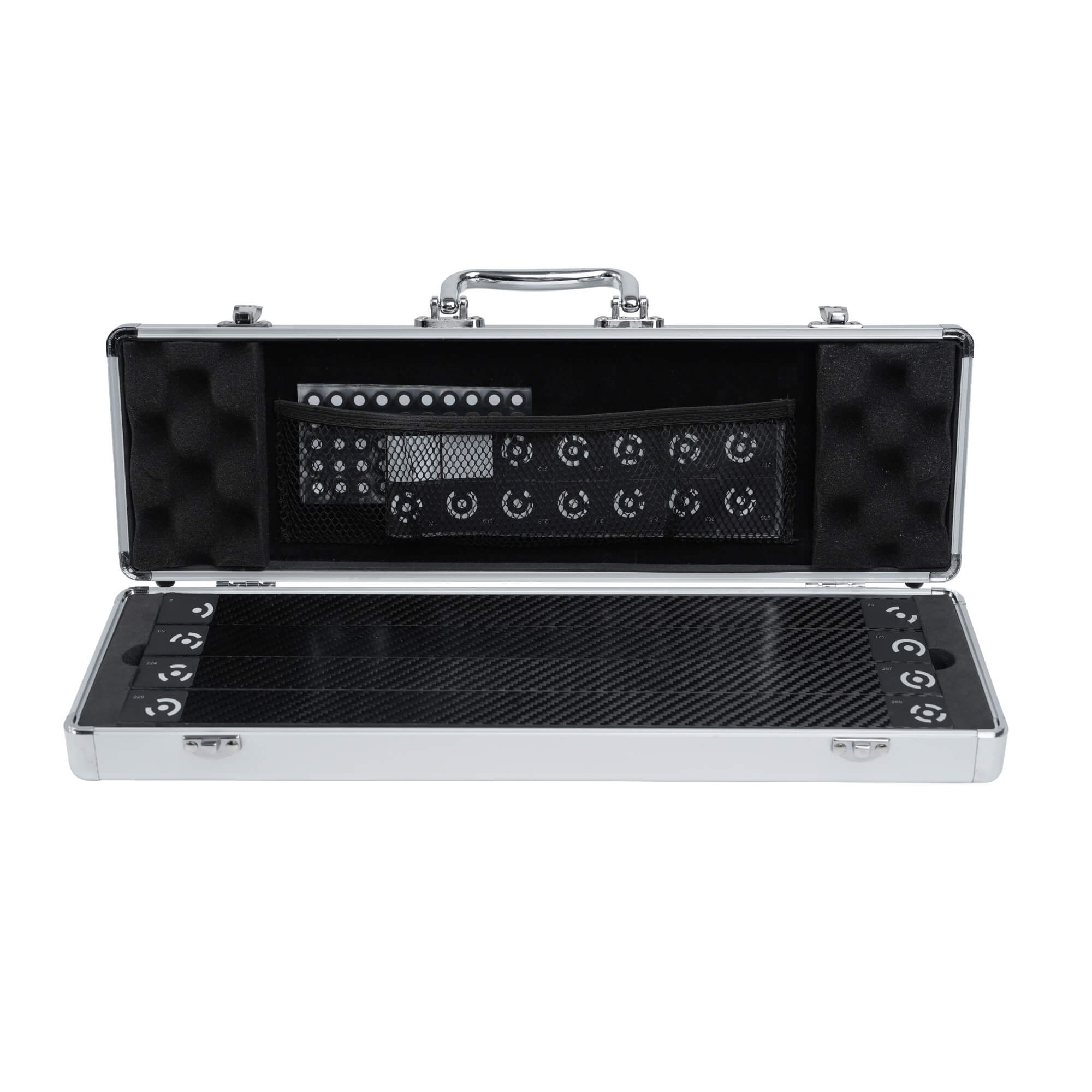

The PMK comes in a smart-looking aluminum carry case that securely holds the 4 magnetic high-precision carbon fiber scale bars, 2 sets of coded targets (sticky x208 and magnetic x208), and 500 markers.
Features
Capture Complex Objects

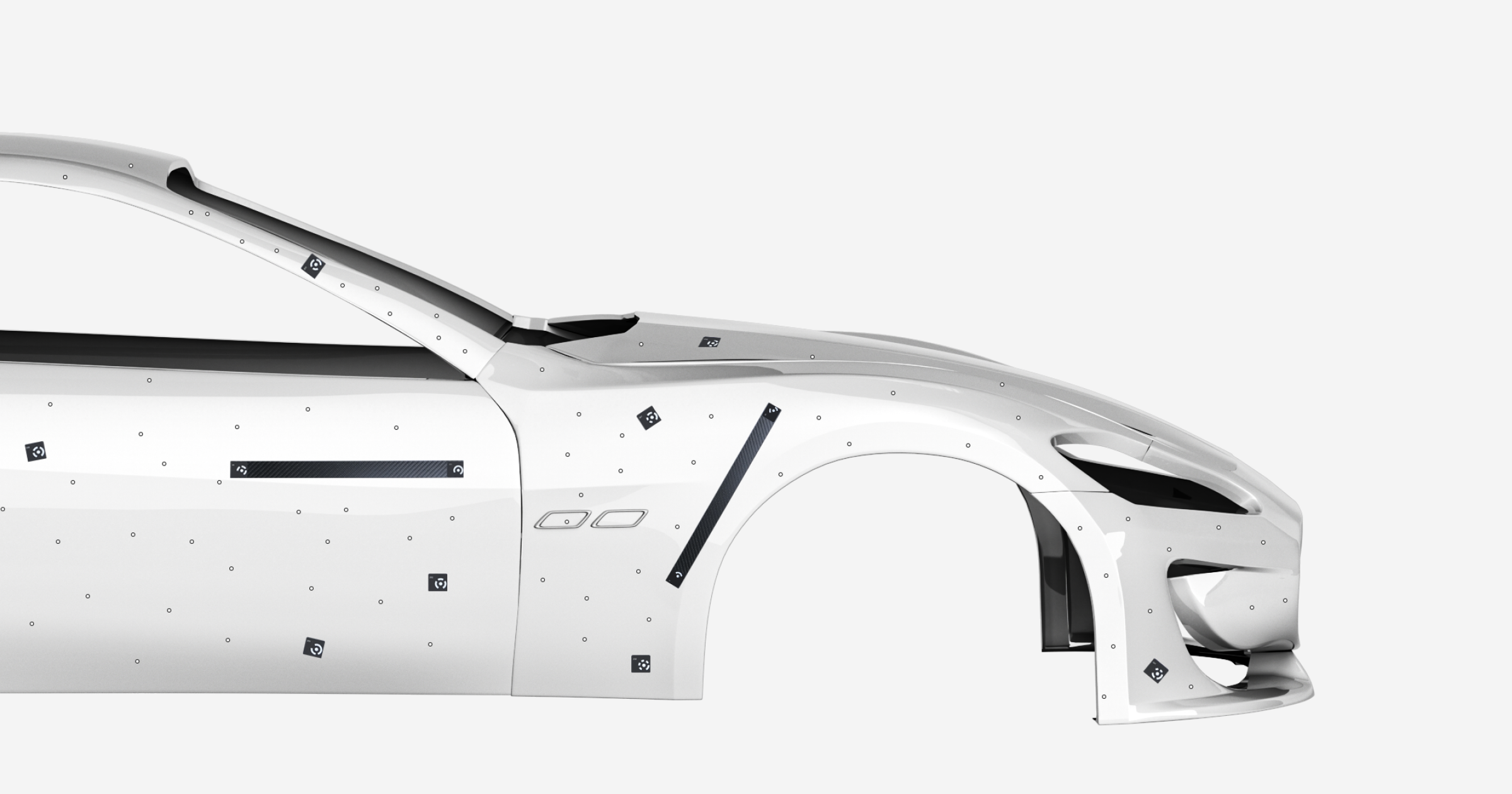

With hybrid photogrammetry, unique coded targets are used to determine point coordinates and high-contrast markers to increase surface area coverage for versatile capturing capabilities.
Features
Full Workflow Integration
Easily transfer your photogrammetric models from MIRACO Plus over Wi-Fi or USB-C to a PC for easy importation into third-party software.
Professional Applications
Efficient Workflows
STEP 1 ： Prepare

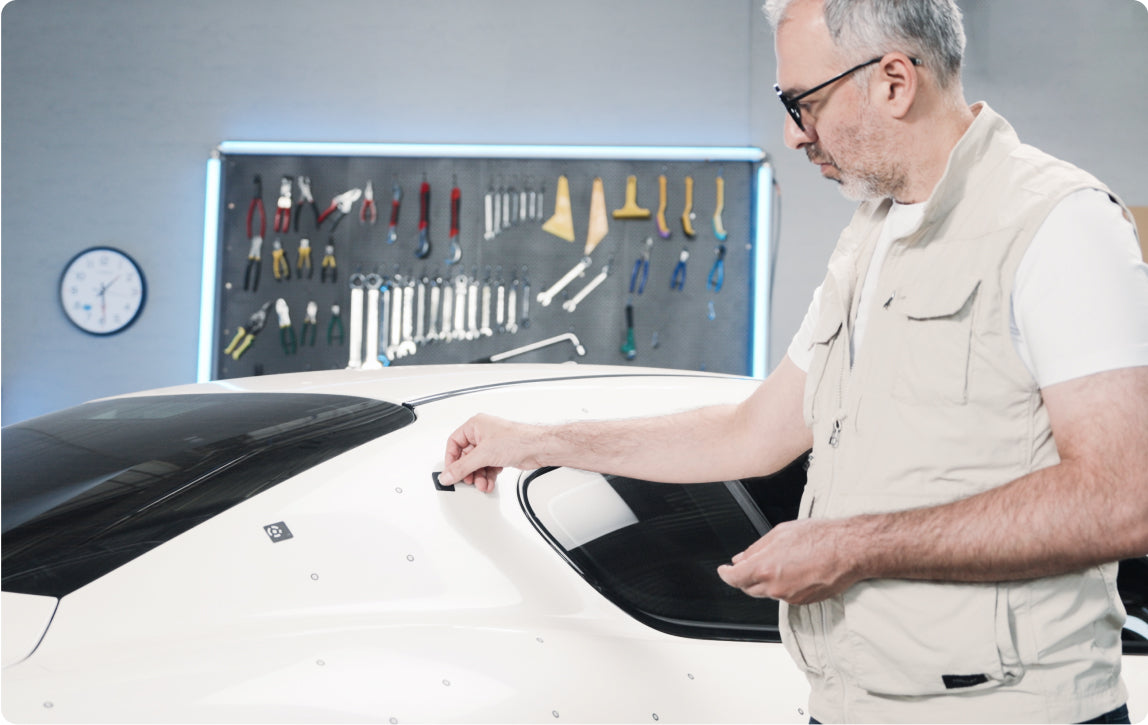

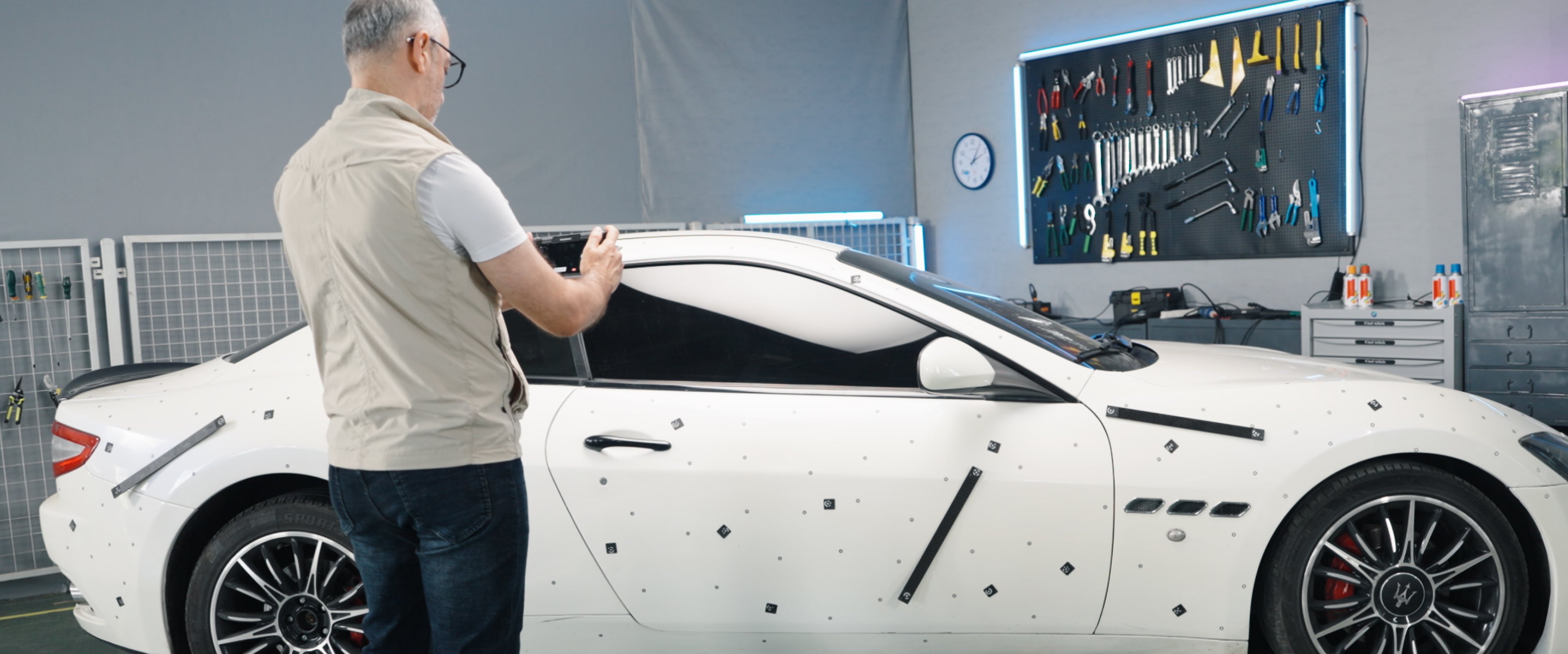

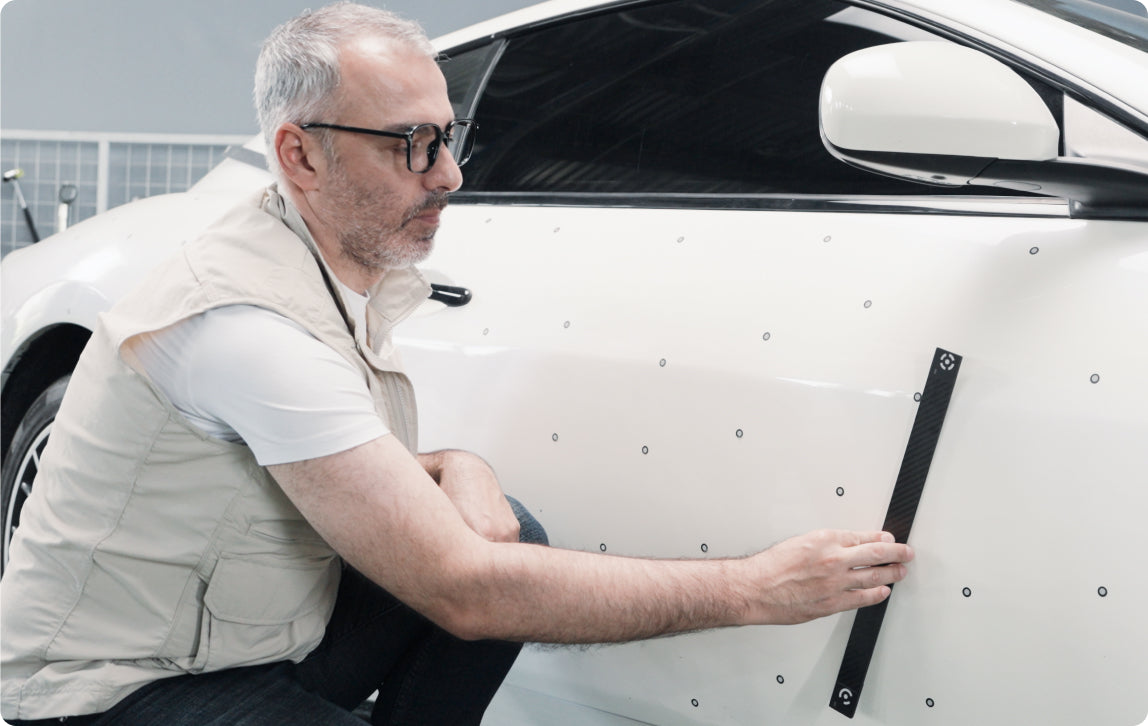

Place the scale bars, coded targets, and markers on or around the object's surface.
STEP 2 ：Shoot

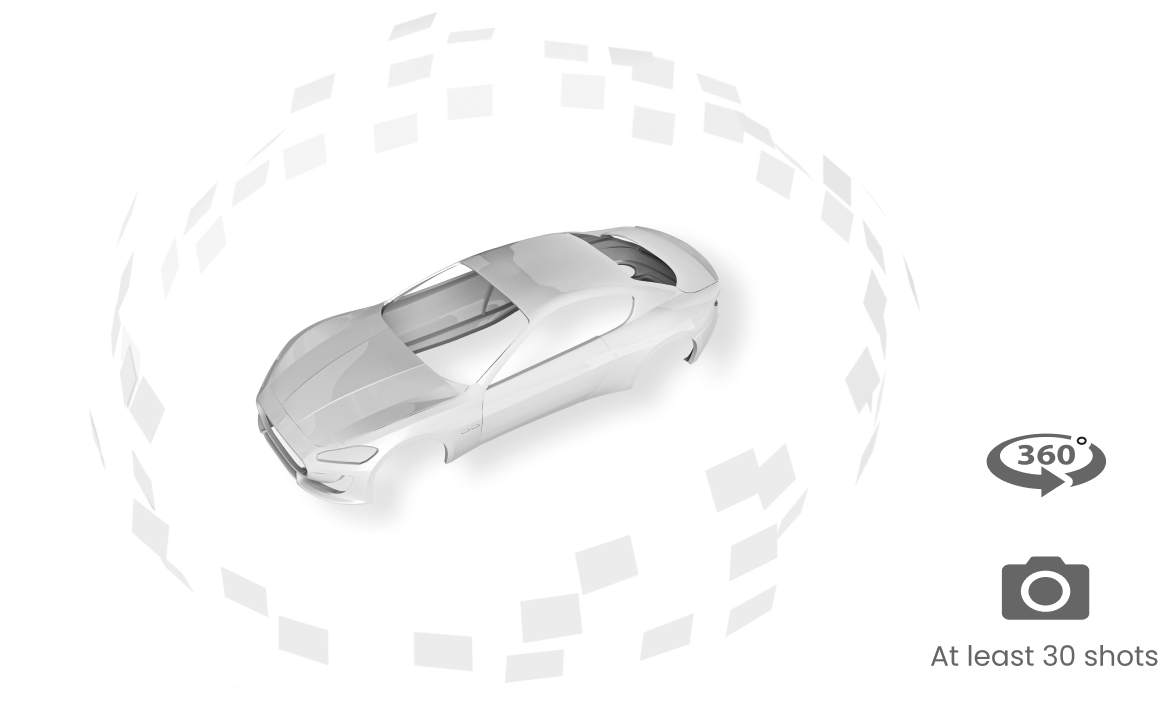

Shoot photos of the object at different heights and angles till fully captured.
STEP 3：Calculate and Capture Point Clouds

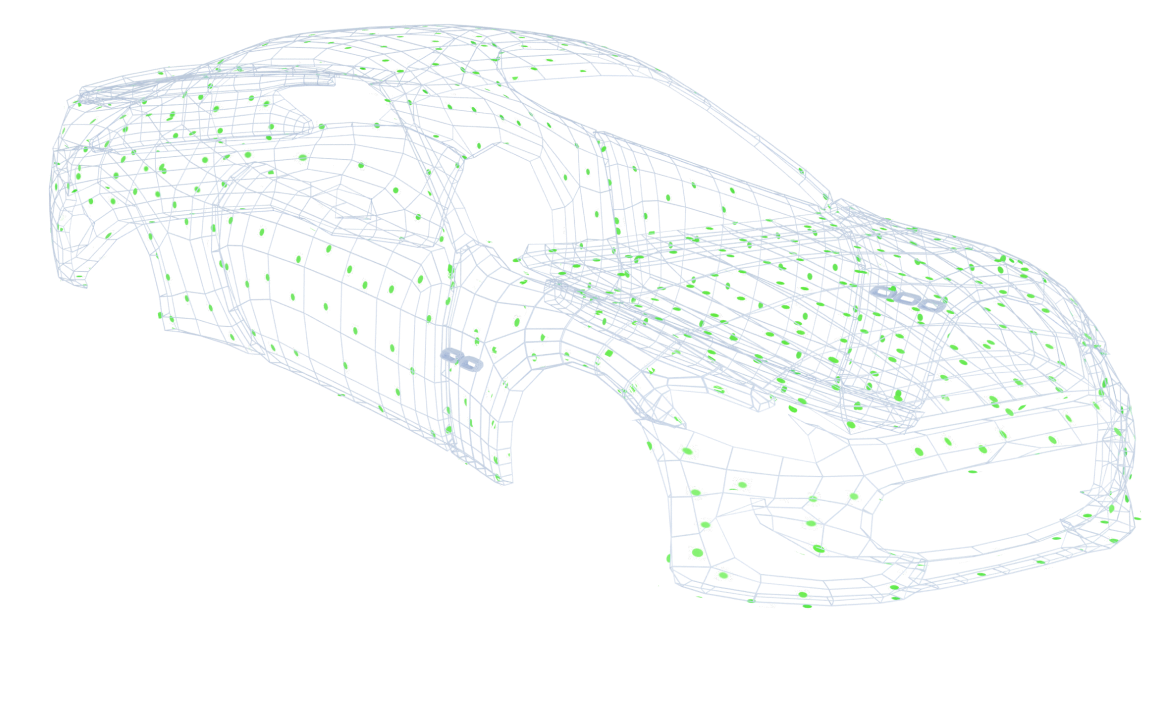

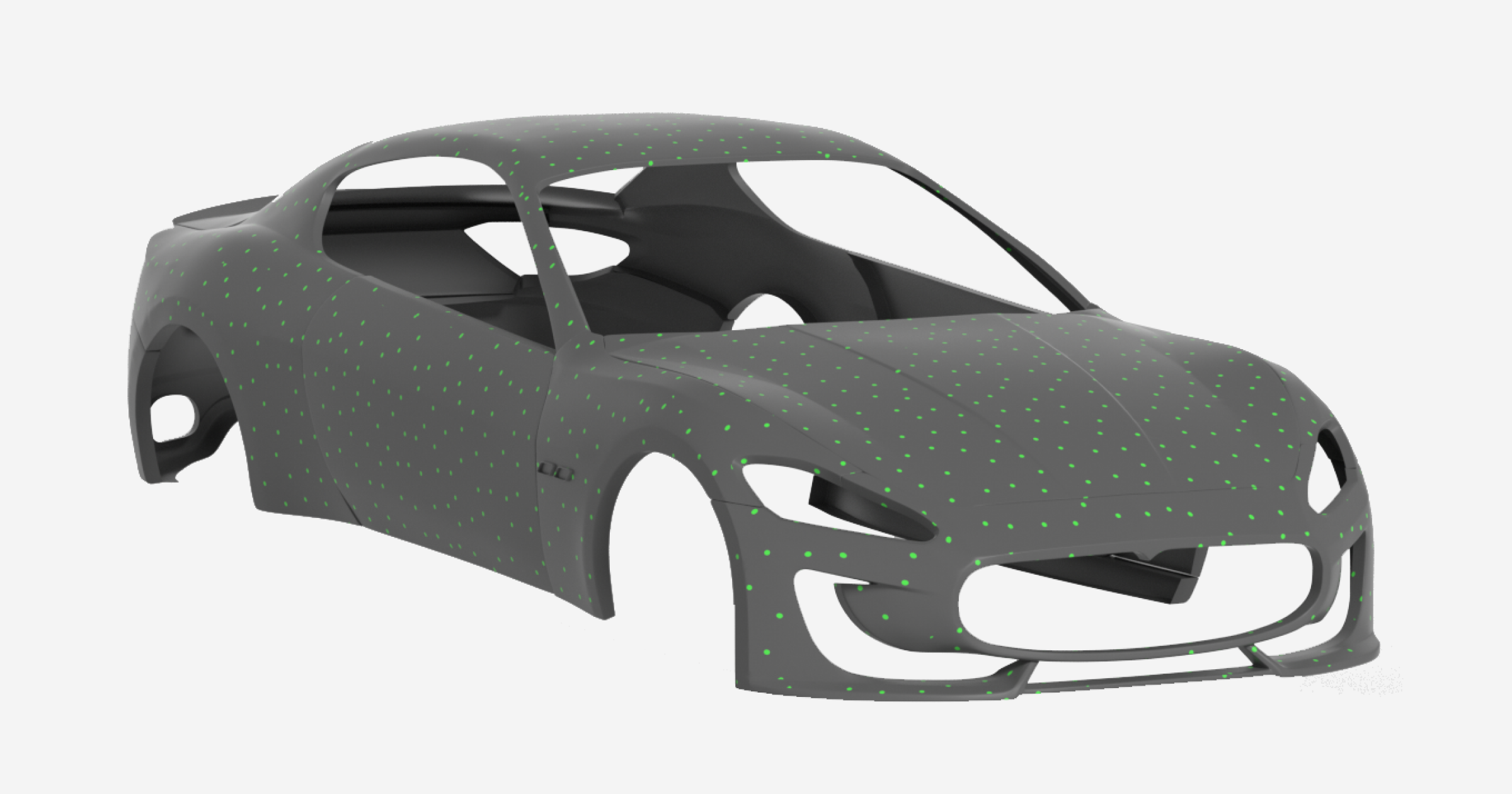

Calculate the markers, then capture the point clouds all on MIRACO Plus 3D scanner .

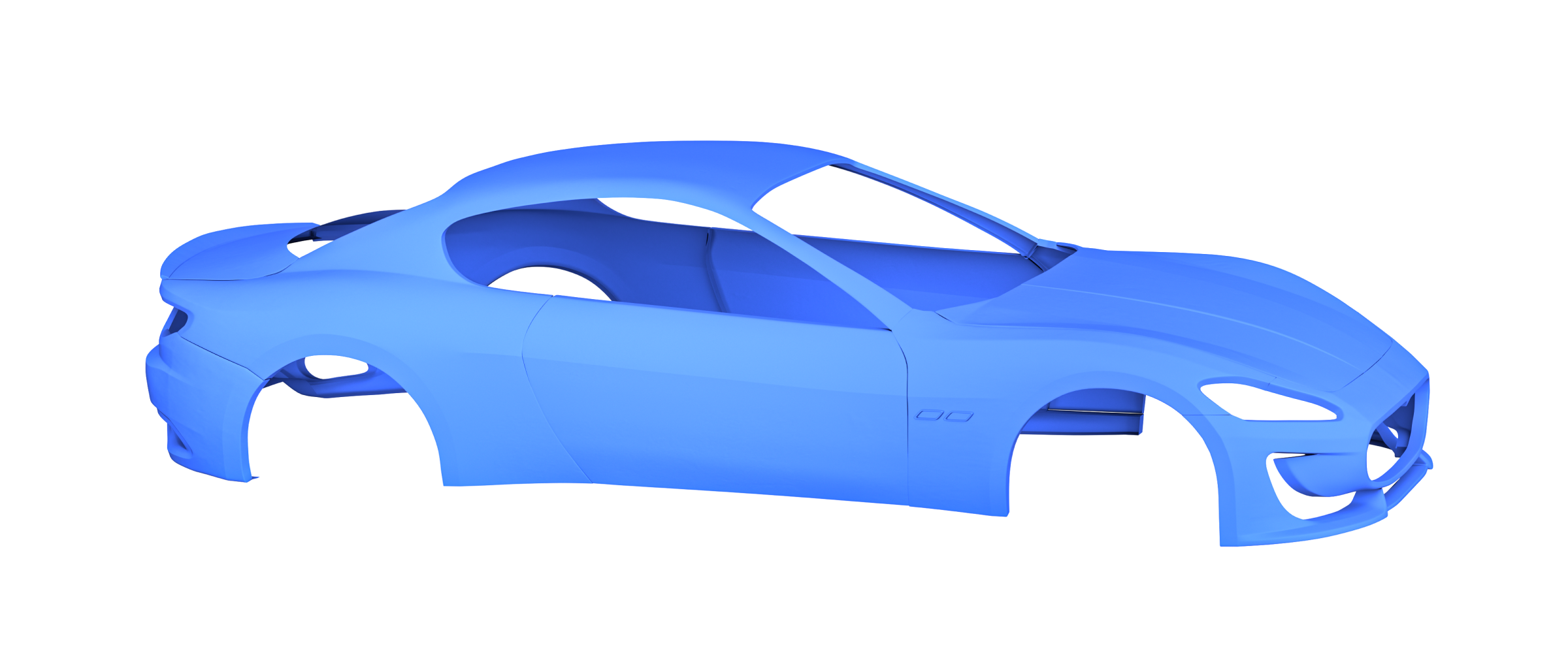

Step 4：Process and Export

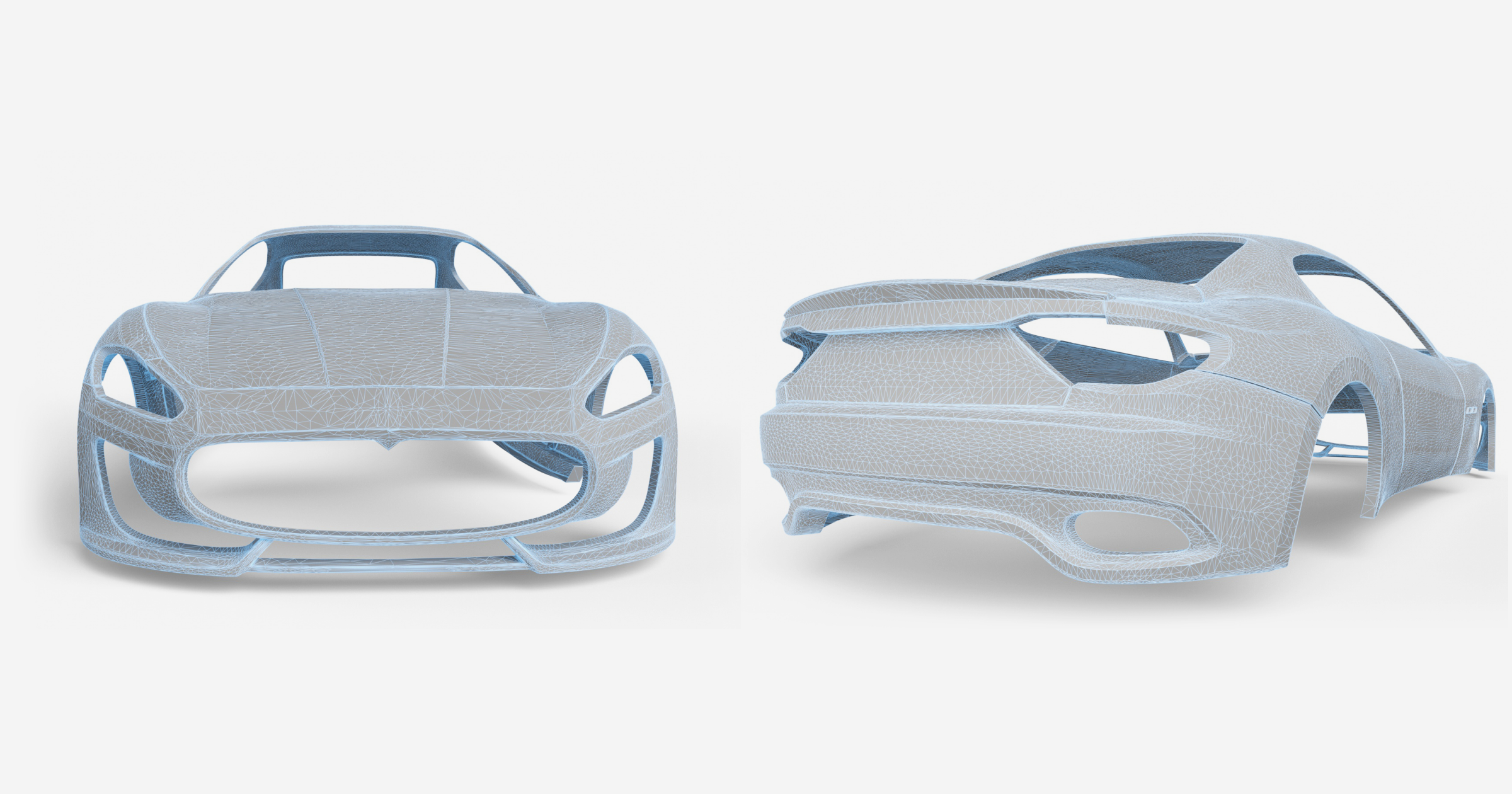

Process, edit, and then transfer to a PC.

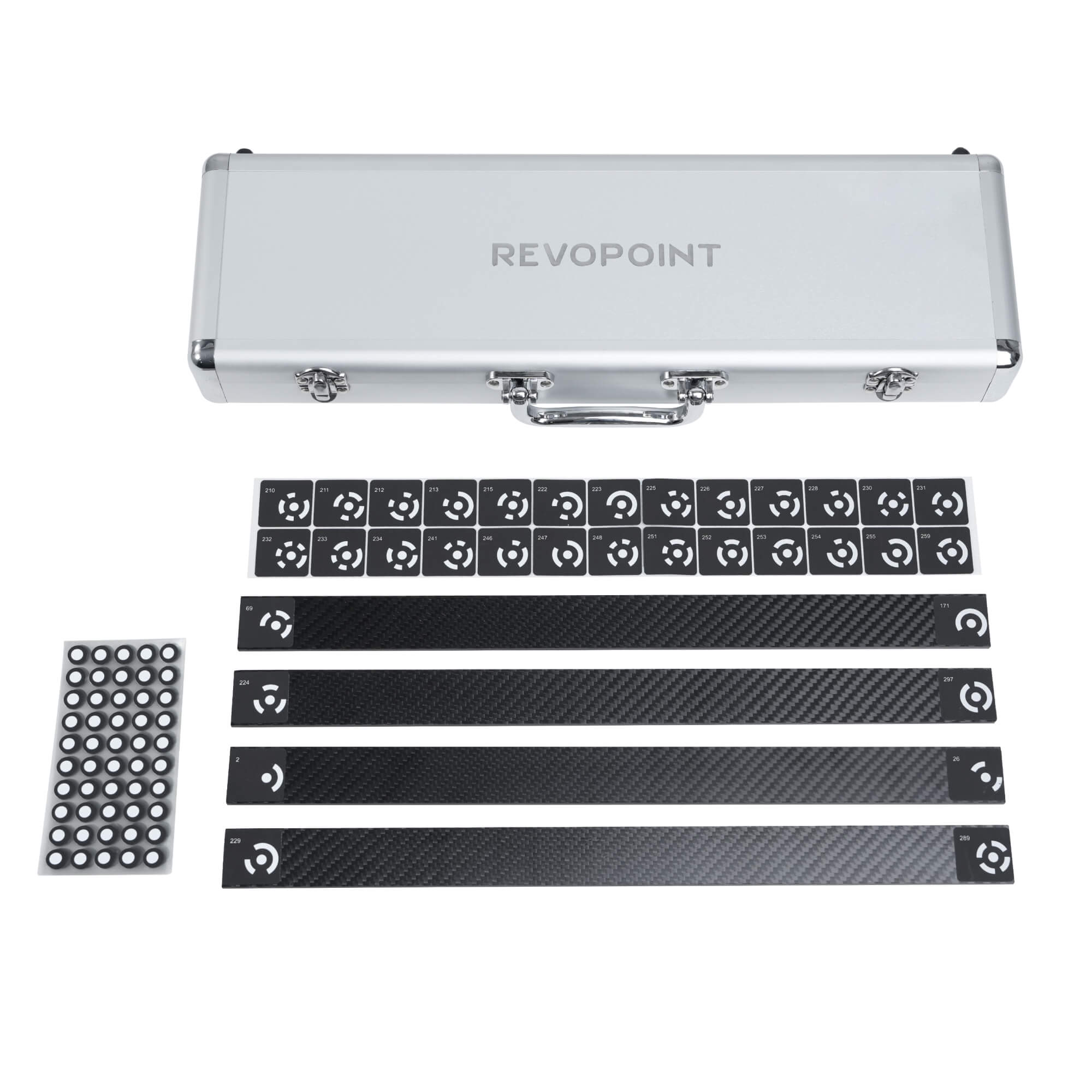

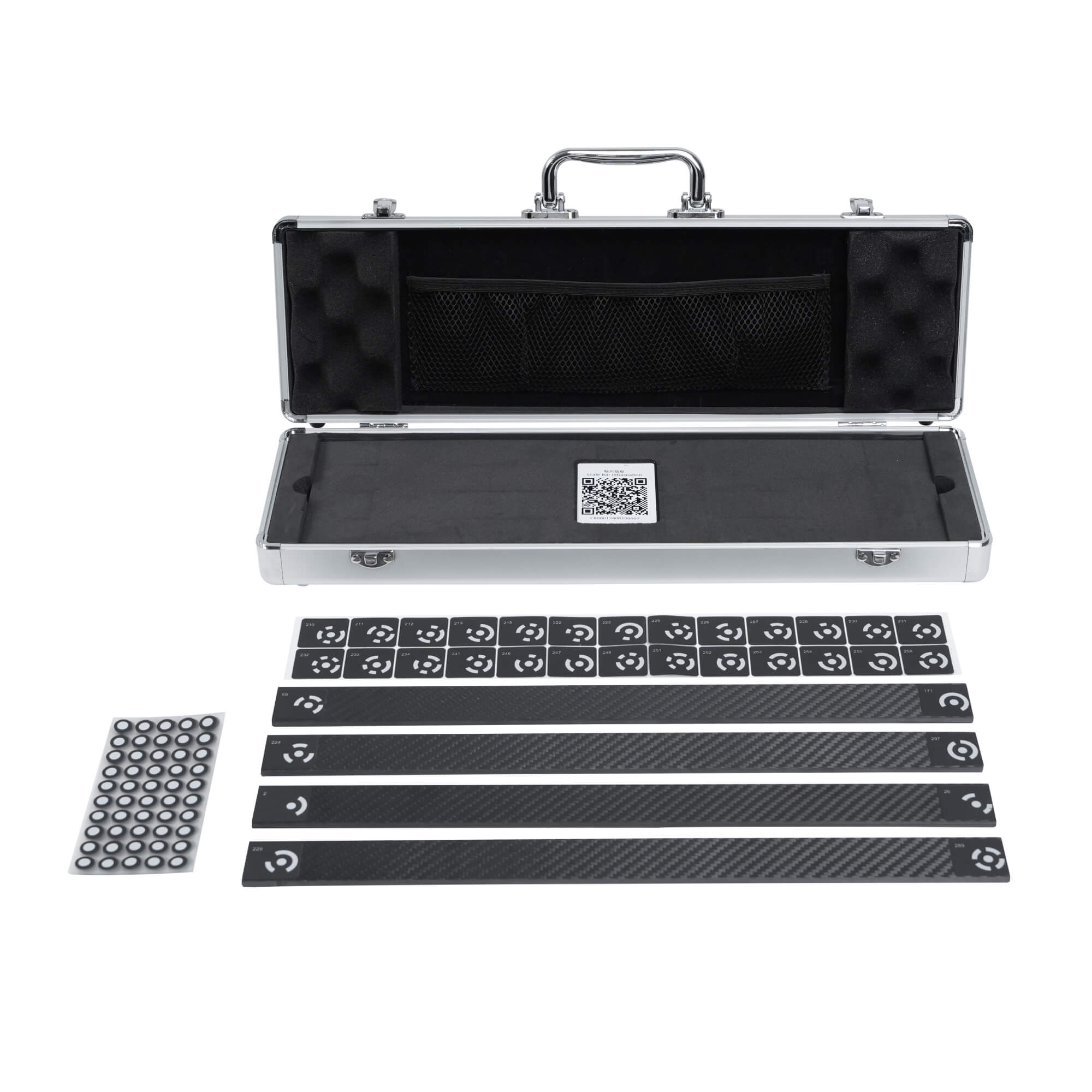

What’s in the Box?
Scale Bar
Coded Targets
Markers
Toolbox
Full Specifications
|
Parts Included |
Scale Bar ×4, Coded Targets × 2 set, Markers × 500, Toolbox × 1 |
|
1）Scale Bar: |
|
|
Material |
Carbon Fiber |
|
Size |
400 × 30 × 4 mm |
|
Weight |
340 g (85 g × 4 ） |
|
Attachment |
Magnetic |
|
2）Coded Targets: |
|
|
Coded Targets Diameter |
5 mm |
|
Size |
22 × 22 mm |
|
Number |
Coded Targets (Sticky) ：208 per set, Coded Targets (Magnetic)：208 per set |
|
3）Markers |
|
|
Size |
Inner Diameter - 6 mm, Outer Diameter - 10 mm |
|
4）Toolbox |
|
|
Material |
Aluminum Alloy |
|
Weight |
700 g |
|
Size |
450 × 161 × 53 mm |
FAQ
What kind of objects is the Photogrammetric Metrology Kit suited for capturing?
The PMK is designed to help you capture large objects such as automobiles, plane or ship parts, or large machinery.
Can my current Revopoint scanner be used with the Photogrammetric Metrology Kit?
The Revopoint MIRACO Plus is the only scanner compatible with the kit.
What are the main applications for the Photogrammetric Metrology Kit?
The PMK is ideal for helping reduce manufacturing errors, rapidly carrying out quality control, speeding up the prototyping process, and reverse engineering applications.
Can I use the coded targets from both the sticky and magnetic sets in the same scan?
Yes, but you must ensure you don't use any identical coded targets (same ID number) from both sets.
