RANGE 2 3D Scanner: Fast and Powerful Large Object 3D Scanning
· Single-frame Precision: Up to 0.1 mm
· Depth/RGB Camera Resolution: 2 Megapixels

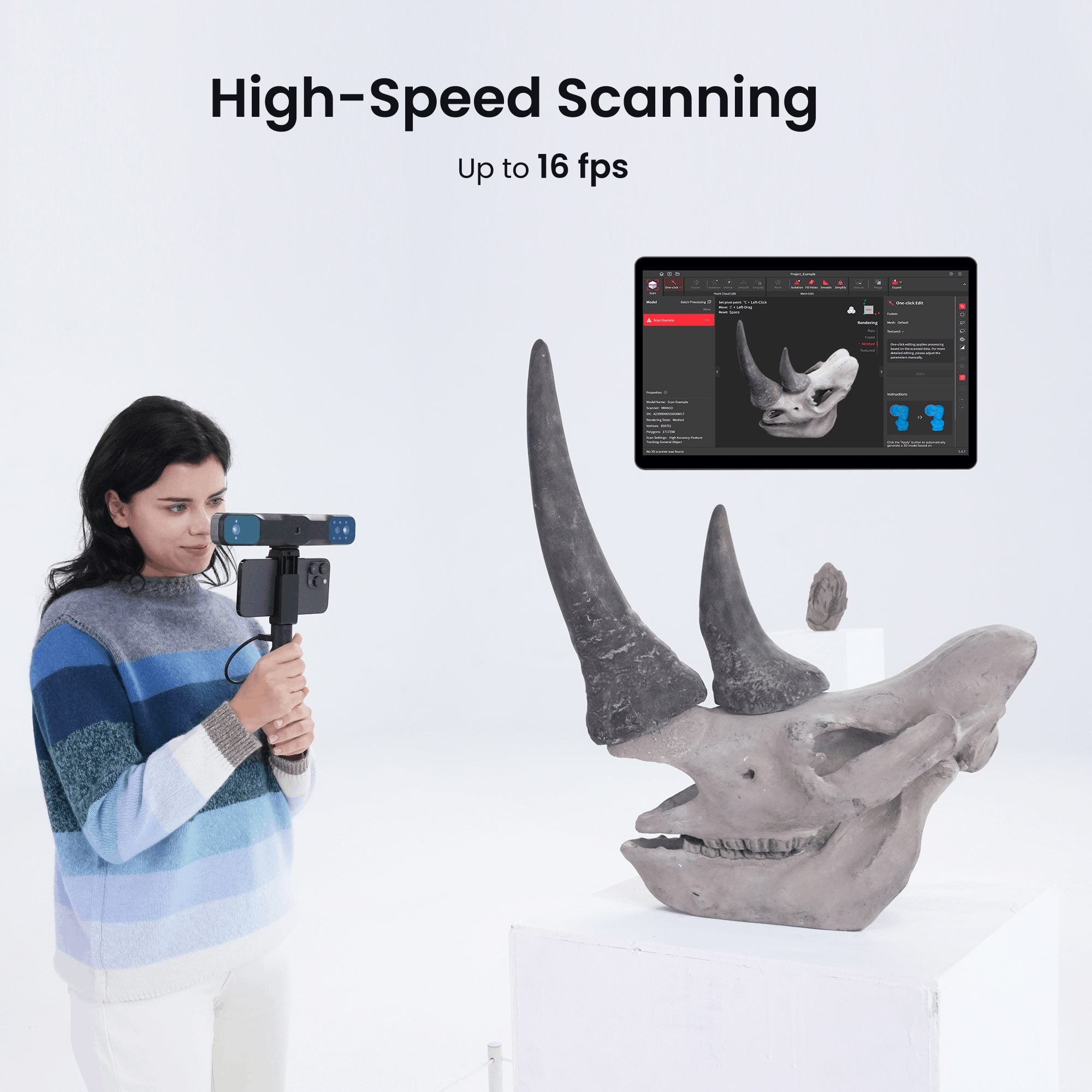

· Scanning Speed: Up to 16 fps
· Working Distance: 400 - 1300 mm
· Maximum Single Capture Range: 860 x 1380 mm@1300 mm

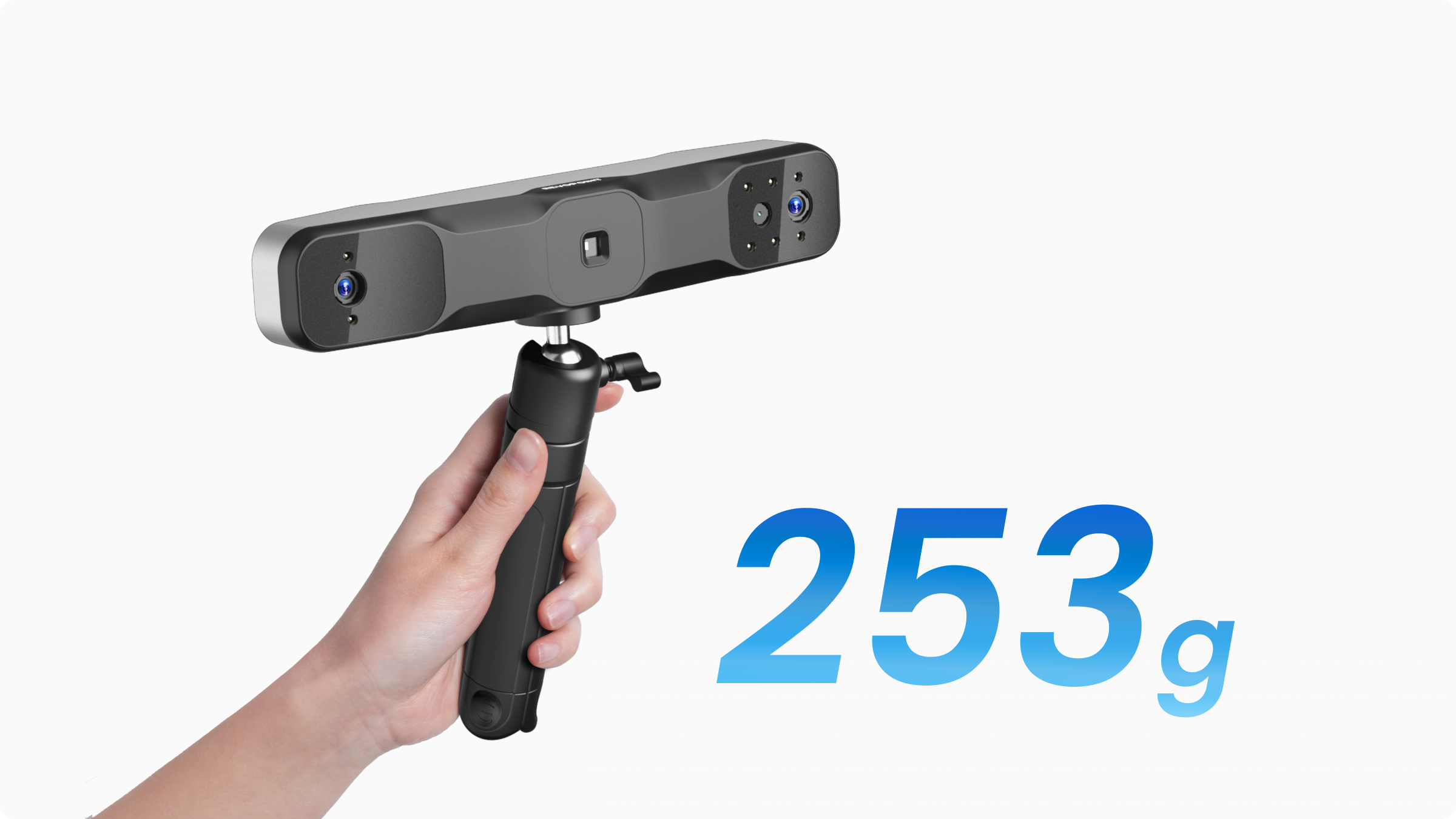

· Scanner Weight: Only 253 g
Free shipping for 3D scanners, 3-5 days fast receipt.
Safe and Reliable Payment Methods.

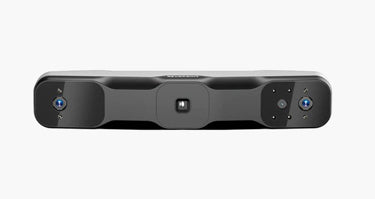

Revopoint RANGE 2 is a portable handheld dual depth camera structured infrared light 3D scanner designed for capturing large objects like furniture, people, and vehicles.

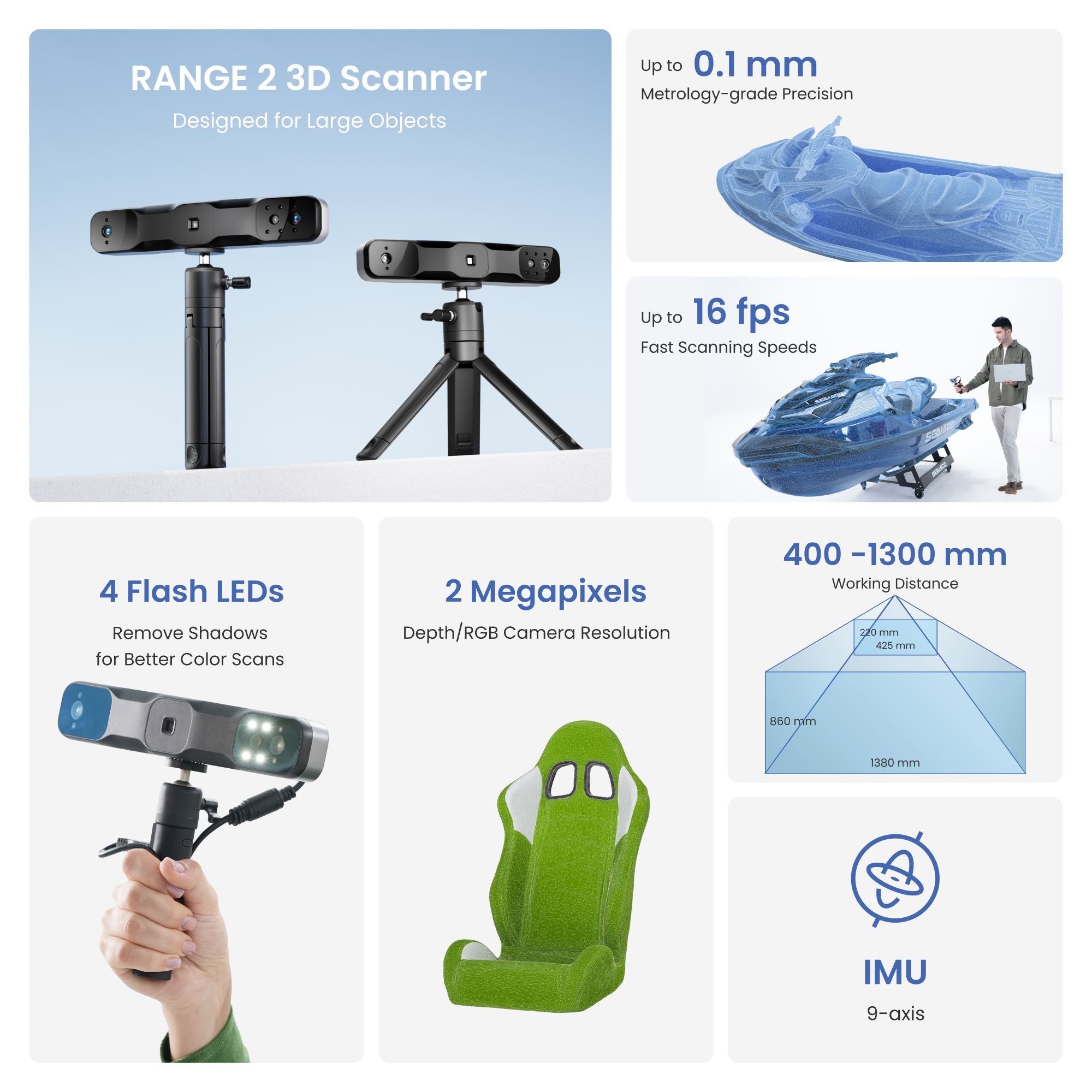

Overview
Reliability Matters

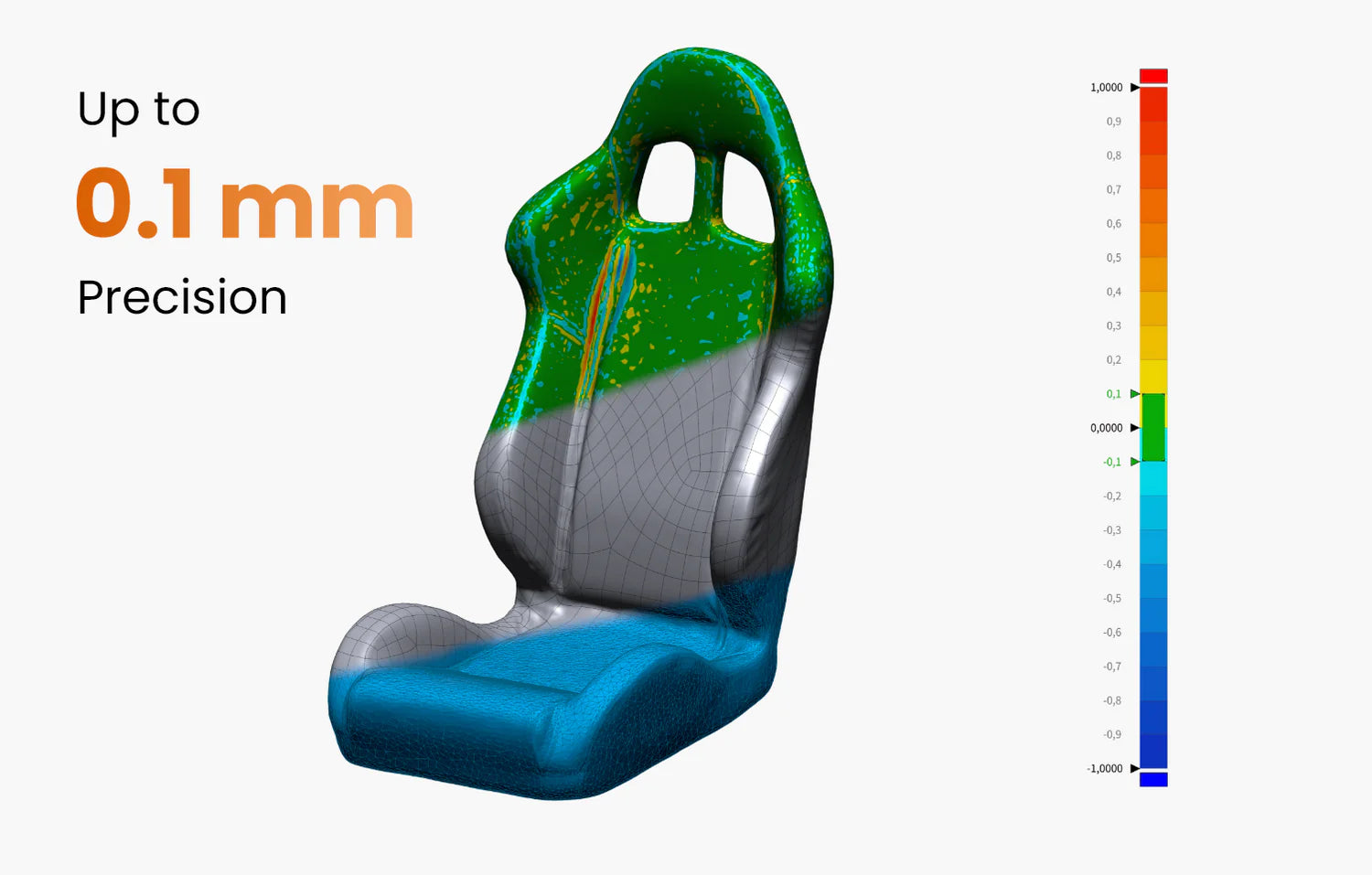

Reliably and consistently capture objects with RANGE 2's
single-frame precision of up to 0.1 mm.
Up to
2 Megapixels
Depth/RGB Camera Resolution
Up to
0.1 mm
Fused Point Distance
Flexible Working Distance
Capture objects at a 400 - 1300 mm distance.

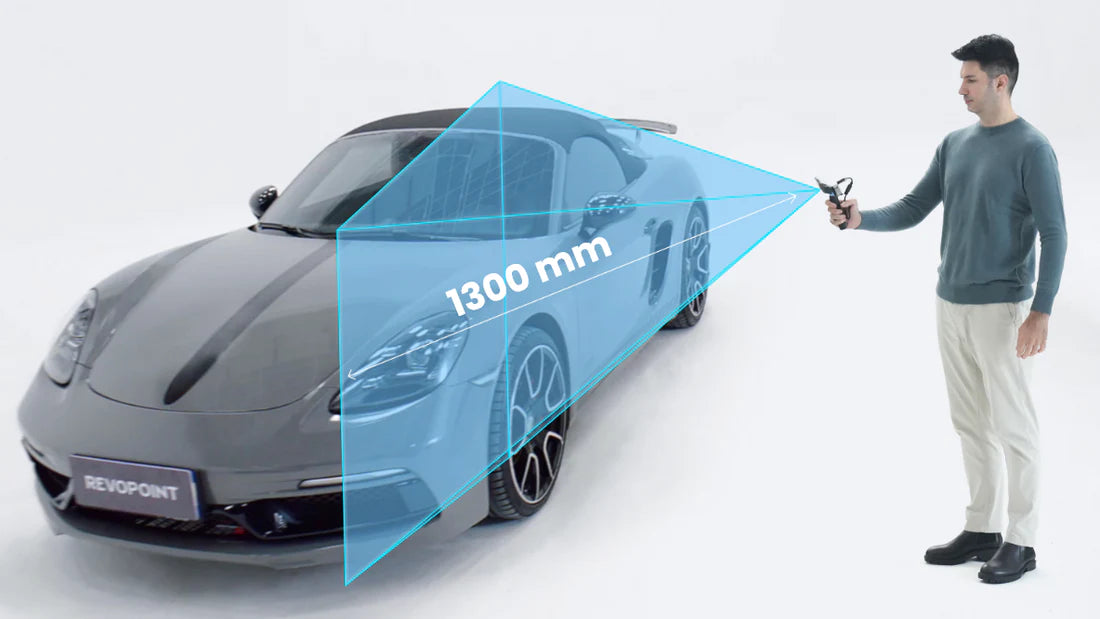

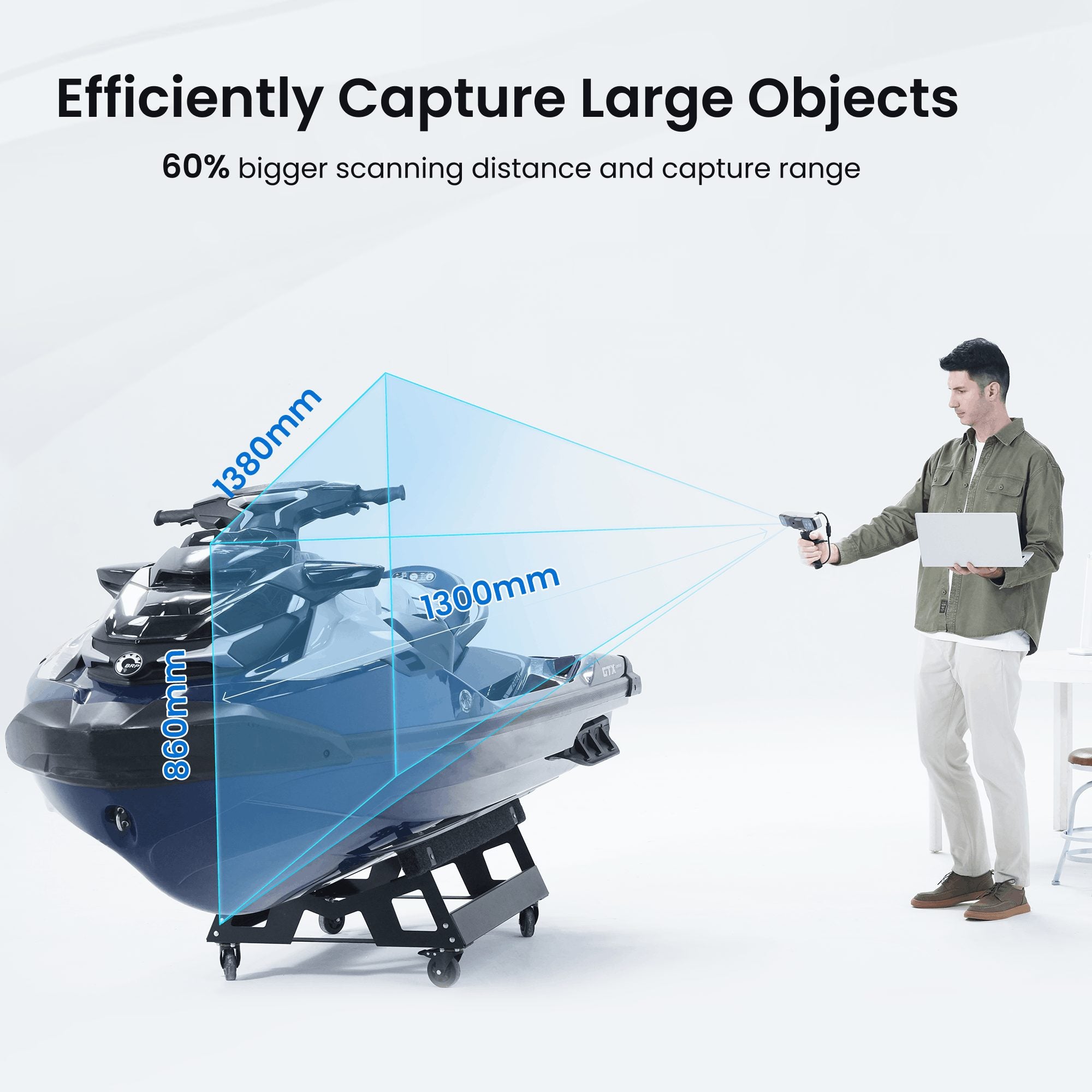

Single Capture Range@furthest Distance
860 x 1380 @1300 mm

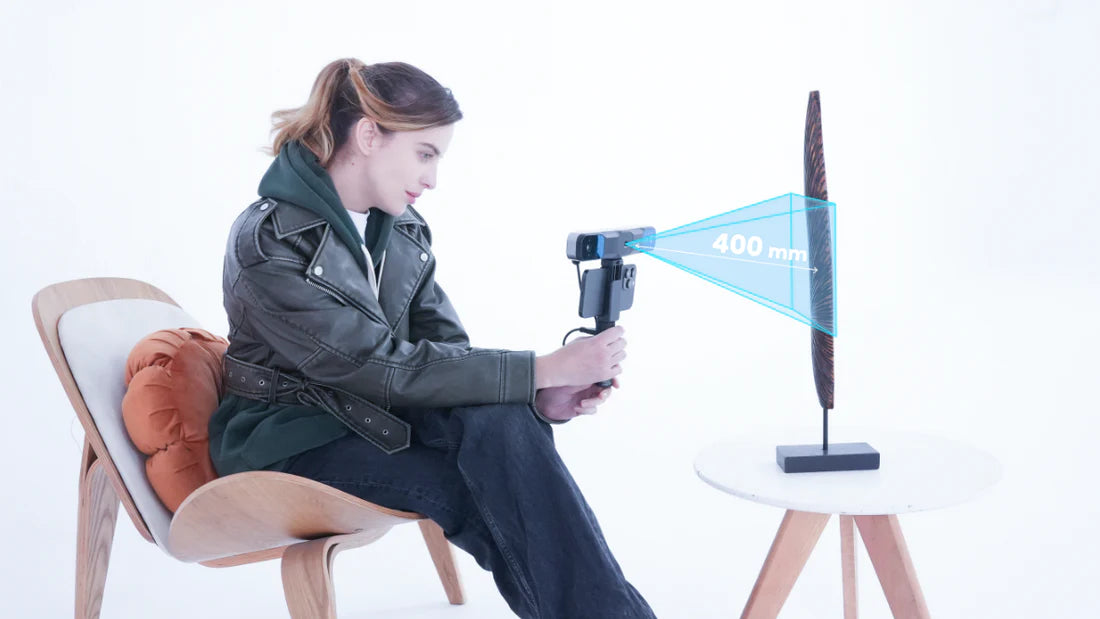

Single Capture Range@nearest Distance
220 x 425 @400 mm
Large Single Capture Range
Capture large objects efficiently.
Highly Portable
Take it everywhere and scan at any time.

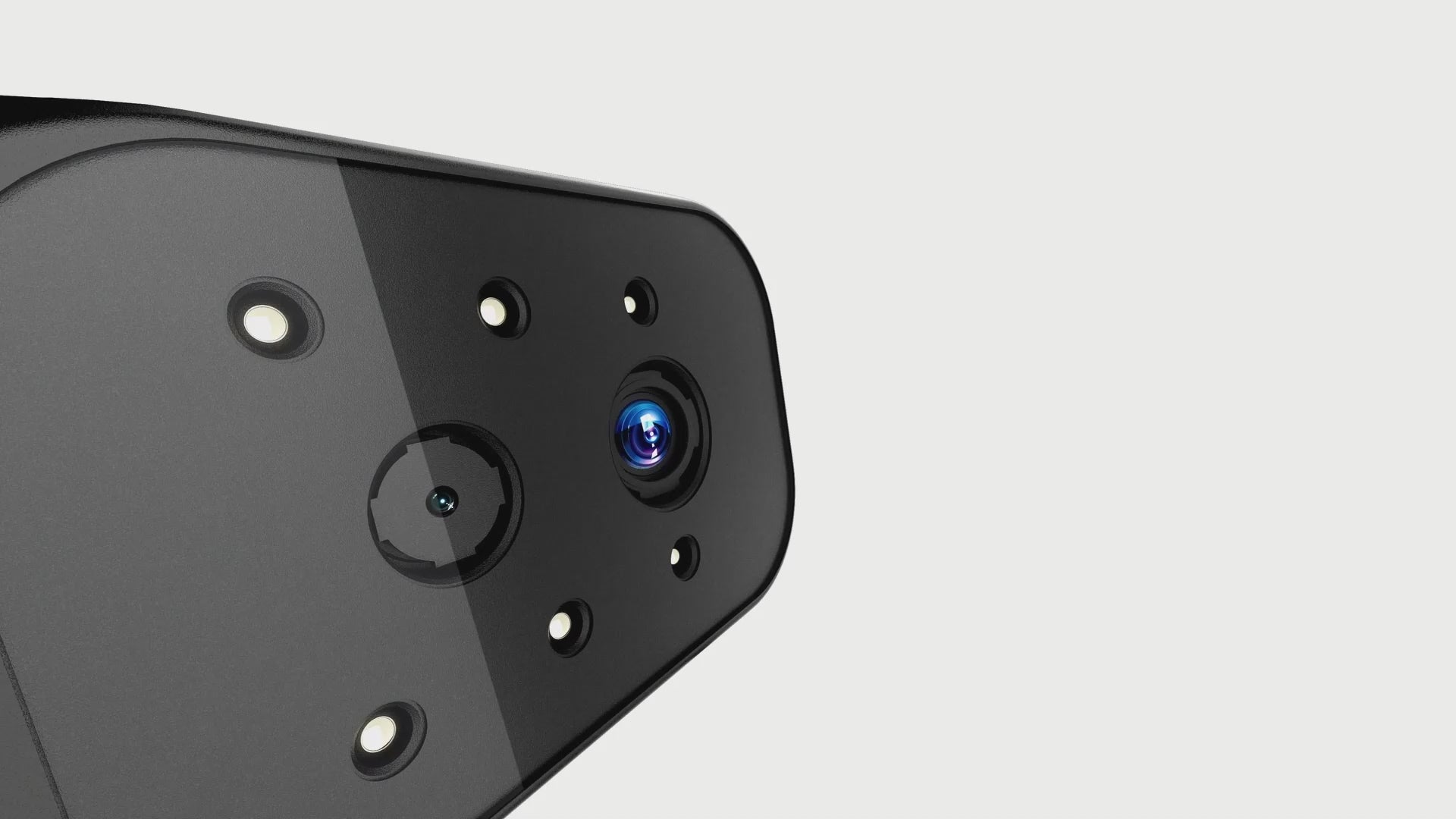

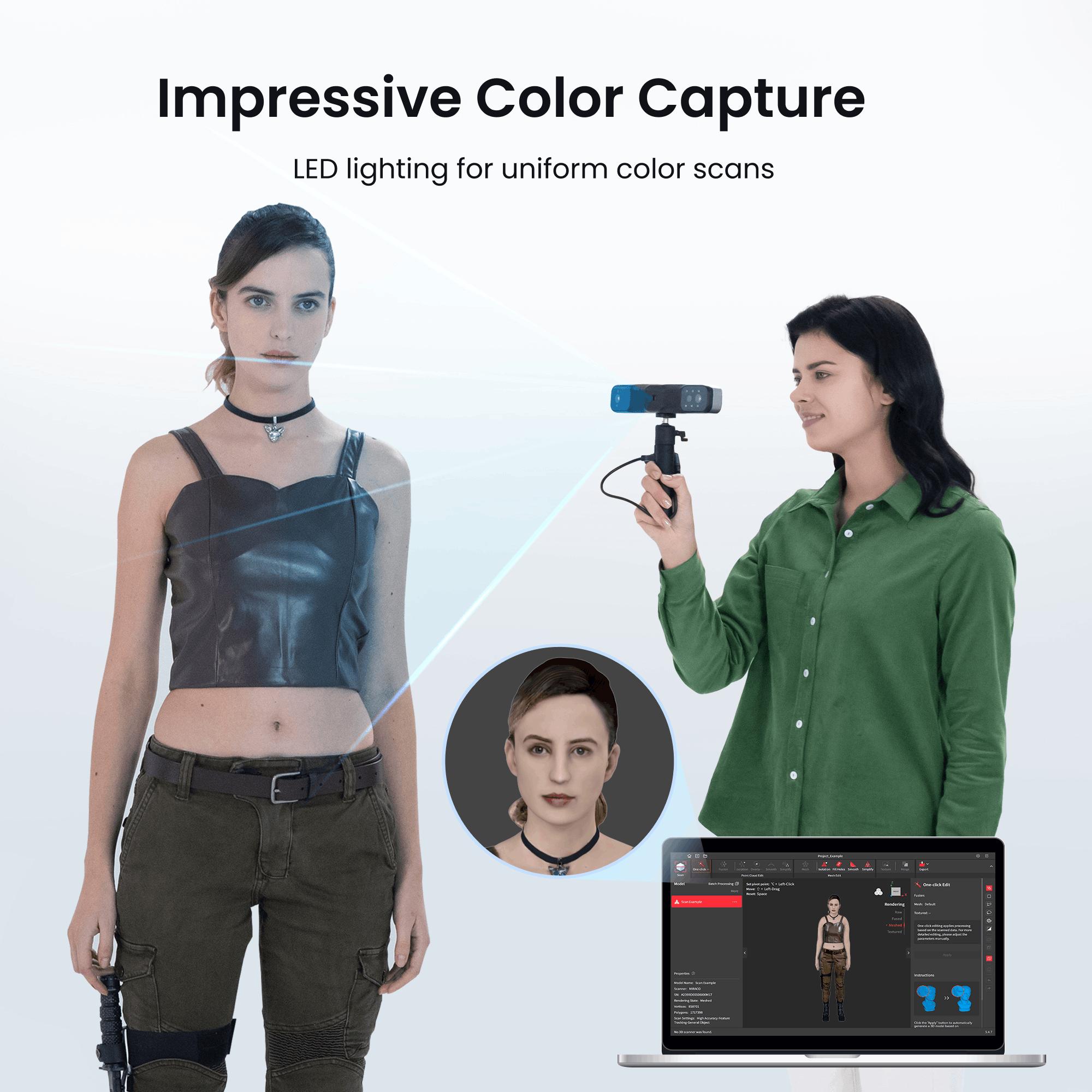

White Flash LEDs
Remove shadows for enhanced color scans.
Tactile Buttons
User-friendly buttons for easier control.
Greater Connectivity
Wi-Fi 6 & USB Type-C

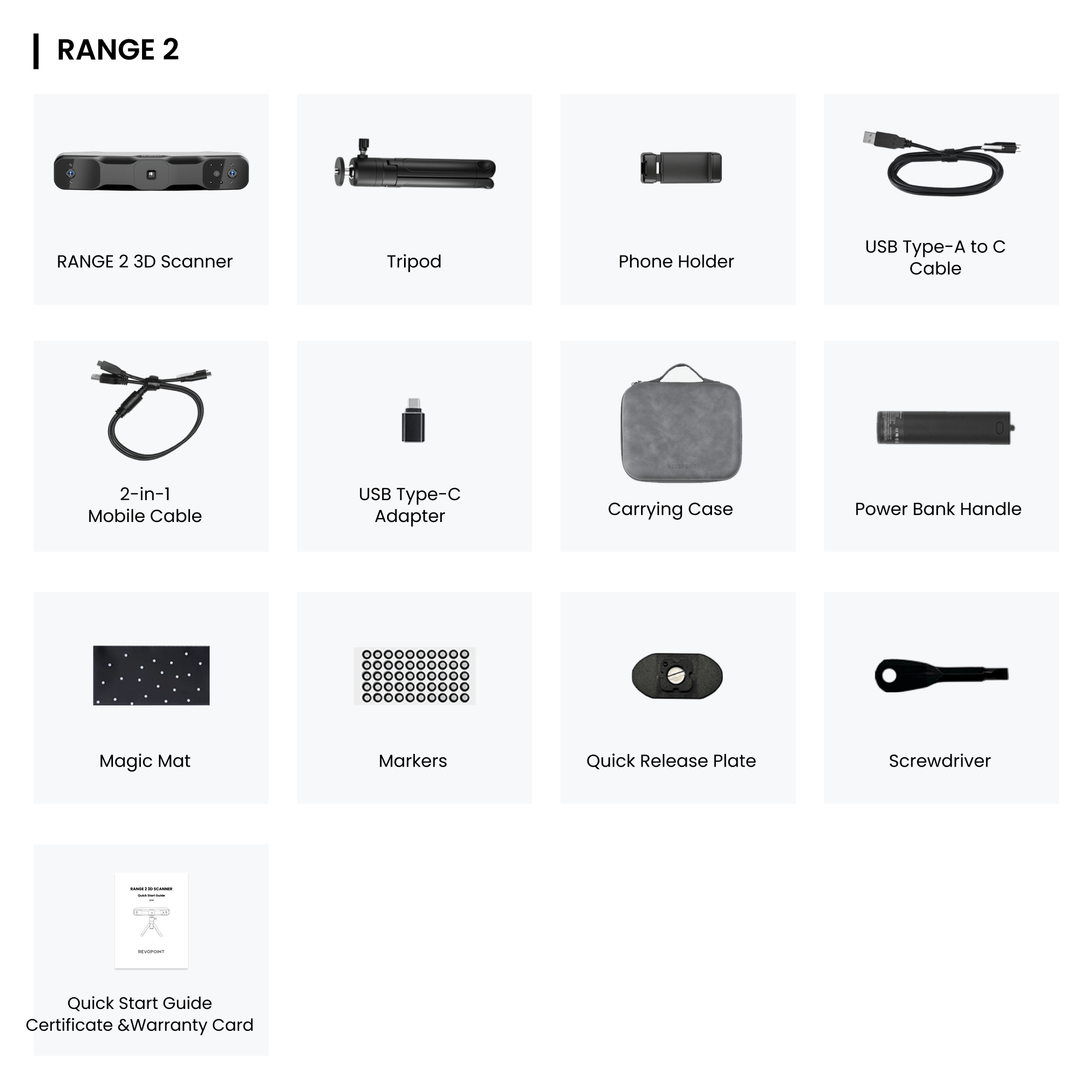

What's in the Box?
RANGE 2 3D Scanner

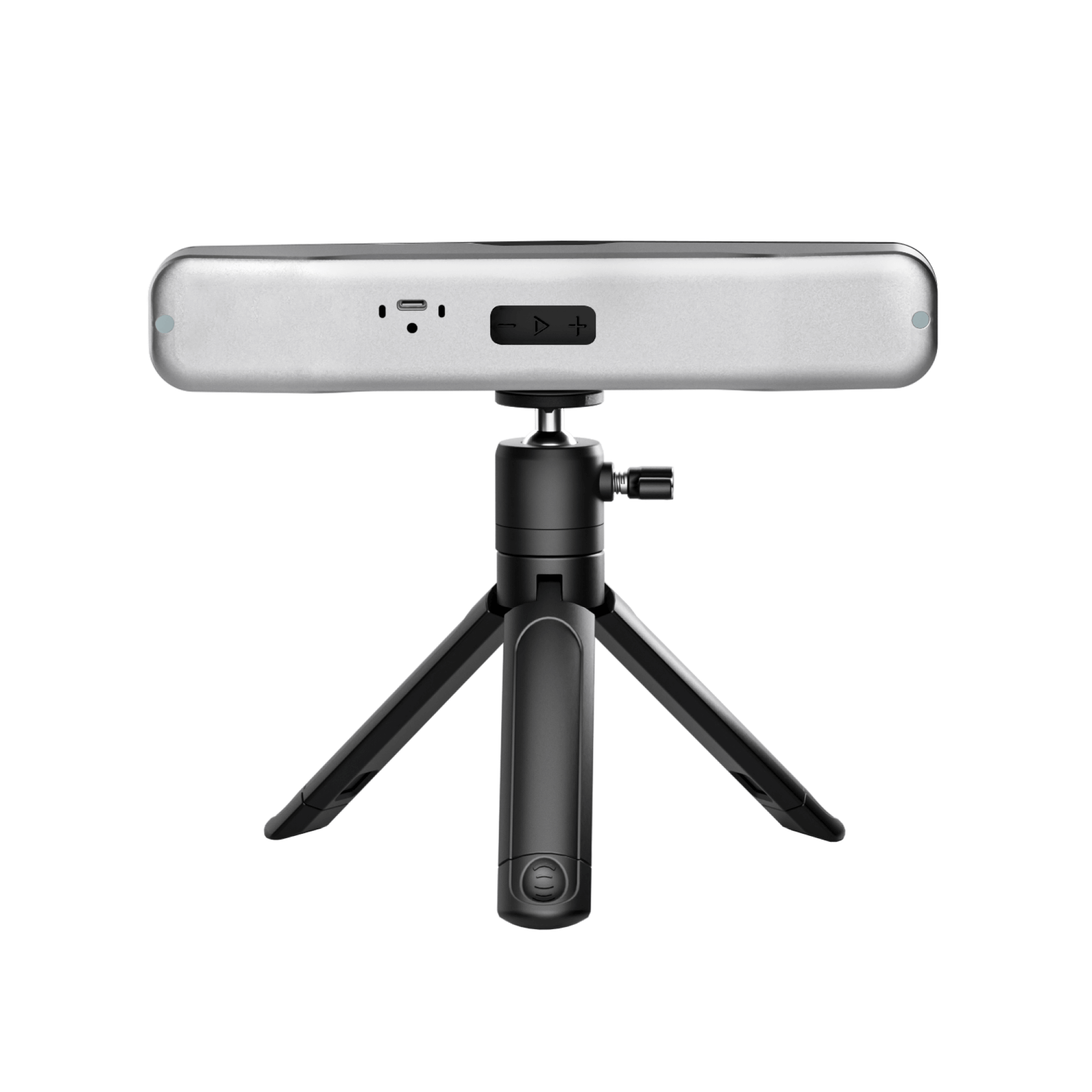

Tripod
Phone Holder
USB Type-A to C Cable
2-in-1 Mobile Cable
USB Type-C Adapter
Carrying Case
Power Bank Handle
Magic Mat
Markers
Quick Release Plate
Screwdriver
Specifications
Product Name
RANGE 2 3D Scanner
Outdoor Scanning
Yes
Technology
Dual-camera Infrared Structured Light
Color Scanning
Yes
Single-frame Precision
Up to 0.1 mm
Scanner Weight
253 g
Single-frame Accuracy
Up to 0.3 mm
Dimensions (L x W x H)
240 x 43 x 46 mm
Single Capture Area
at Nearest Distance
220 x 425 mm at 400 mm
Ready to Print 3D Models
Yes
Single Capture Area
at Furthest Distance
860 x 1380 mm at 1300 mm
Compatible Operating Systems
Window 10/11 (64-bit), Android, iOS, macOS 11.0 or better
Working Distance
400 - 1300 mm
External Controls
Three buttons for Start/
Pause, Exposure +, -
Point Distance
Up to 0.1 mm
Infrared Fill Lights
Yes
Minimum Scan Volume
50 × 50 × 50 mm
White Flash LEDs
Yes
Scanning Speed
Up to 16 fps
Output File Formats
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Position Sensors
9-axis IMU
Wi-Fi
Wi-Fi 6
3D Light Source
Class 1 Infrared Light
Connector Type
USB Type-C
Tracking Methods
Feature, Marker, Global Marker
Special Object Scanning
Use scanning spray for transparent,
dark, or highly reflective objects.
Minimum PC Requirements
macOS
CPU: M1 Pro or better; RAM ≥ 8GB
Windows
CPU: Intel i7 12th Gen or better; RAM ≥ 16GB
Recommended PC Requirements
macOS
CPU: M3 or better; RAM ≥ 8GB
Windows
CPU: Intel i9 11th Gen or better; RAM ≥ 32GB
FAQ
Scanning Scenarios. The RANGE 2 is designed for professionals who want to scan large objects such as furniture, people, and vehicles, creating vivid color models. The POP 3 is designed for professionals who want to scan medium-sized objects, such as engine parts or vases. The MINI is designed for professionals who want to scan smaller objects such as jewelry, miniature figurines, or hardware components, providing precise detail-capturing capabilities. The INSPIRE is for hobbyists, 3D printing enthusiasts, and makers who want to scan medium-sized objects.
RANGE 2’s IMU is a 9-axis IMU with a gyroscope, accelerometer, and magnetometer that all work together to help RANGE 2 understand its location as you move the scanner around an object. This, in turn, helps RANGE 2 provide smoother frame stitching as well as helps eliminate any faulty frames captured caused by shaking or moving too fast.
Magic Mat is a 80 cm x 60 cm black mat with highly reflective marker points across its surface that is designed to make scanning featureless objects much easier by removing the need to place marker points on the item.
In Revo Scan 5’s Home Screen, click the settings icon next to RANGE 2’s name. Then click on the “Start Calibration” button to start the process. Follow the on-screen instructions to recalibrate your RANGE 2.
No, the RANGE 2’s algorithms and internal chip do most of the processing.
Minimum specs: Intel i5, 8GB RAM.
Recommended specs: Intel i7, 16GB RAM or better.
No discrete GPU like an Nvidia or AMD graphics card is needed to use RANGE 2.
RANGE 2 uses class 1 infrared structured light, dual depth cameras, and advanced algorithms to output detailed 3D models.
Yes, the RANGE 2 is entirely eye and skin-safe as it uses class 1 infrared light.
Yes, the RANGE 2 comes with Revo Scan for free. It is compatible with iOS, macOS, Android, and Windows devices. In Revo Scan, you can perform scans and post-processing.
Revo Scan can export your models in PLY, OBJ, and STL for compatibility with most 3D modeling, slicer, and CAD software.
Yes, the scanned models can be output in STL format, which is compatible with most slicer software.
No, RANGE 2 is only compatible with the Revo Scan software, which you can download from our website or your device’s app store. However, the models generated by the scan are compatible with nearly all third-party 3D modeling software.
No, RANGE 2 does not need to be connected to an internet-capable network to work.
You can send the projects on your phone to a PC. Ensure your phone and PC are connected to the same Wi-Fi network. Don’t minimize the app or turn off your phone’s screen during the file transfer, or the transfer will fail.
● Import from Phone via Verification Code
1. Click the Import From Phone button.
2. Open Revo Scan V5.0 or above on your phone and find the project you want to share.
3. Tap the Share icon.
4. Enter the code shown on your PC to your smartphone.
5. Start file transferring.
● Import from Phone via QR Code
1. Click the Import From Phone button.
2. Click the QR Code icon.
3. Open Revo Scan V5.0 or above on your phone, and find the project you want to share.
4. Tap the Share icon.
5. Scan the QR code on your PC.
6. Start file transferring.
Marker points are stuck on or around objects without geometric features, so the RANGE 2 can track what it is scanning. When using marker points, place them in irregular patterns with around 6 - 10 cm between the markers across the object you’re scanning, and ensure that there are 5 marker points always in the frame when scanning.

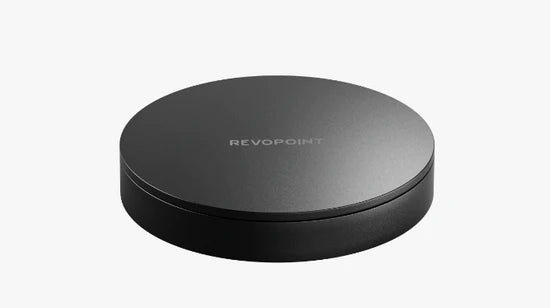

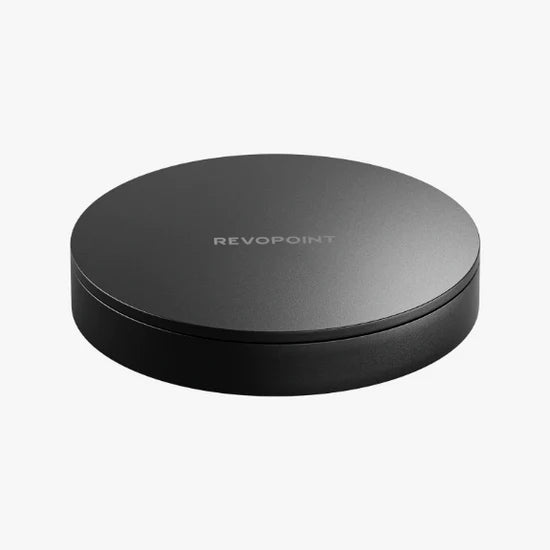

● Large Turntable Specifications:
Power Output: 24V/3A
Dimensions: (H) 100mm X (D) 502mm
Speed: 35 - 90 Seconds per Rotation
Max Load: 200kg
Product Gross Weight: 7kg
Control Method: Via Remote Controller / App Over Bluetooth
Rotation Control: Direction, Speed, and Start/Pause
Noise: ≤55 (DB)
Main Materials: ABS+PC
● What’s in the Box?
1. Large Turntable
2. Remote Controller
3. Power Cable
4. Multi-region Adapter (Supports US/EU/AU/GB plug types)
No, repeated scanning makes your model worse. One scan close to the object will result in the best accuracy.
Like most 3D scanners, highly reflective, transparent, or dark objects can only be effectively scanned using 3D scanning spray to coat the object’s surface.
Yes, but it won't work well in direct sunlight. The RANGE 2 is not water resistant, so avoid outdoor scanning on rainy days.
RANGE 2 has a minimum scan volume of 50 mm x 50 mm x 50 mm.
Yes, but advanced scanning skills and post-processing are needed. Keep in mind that the smaller the object and its details, the less RANGE 2 will be able to detect, as it’s optimized for large object scanning.
