POP 3 PLUS

POP3 PLUS

Overview

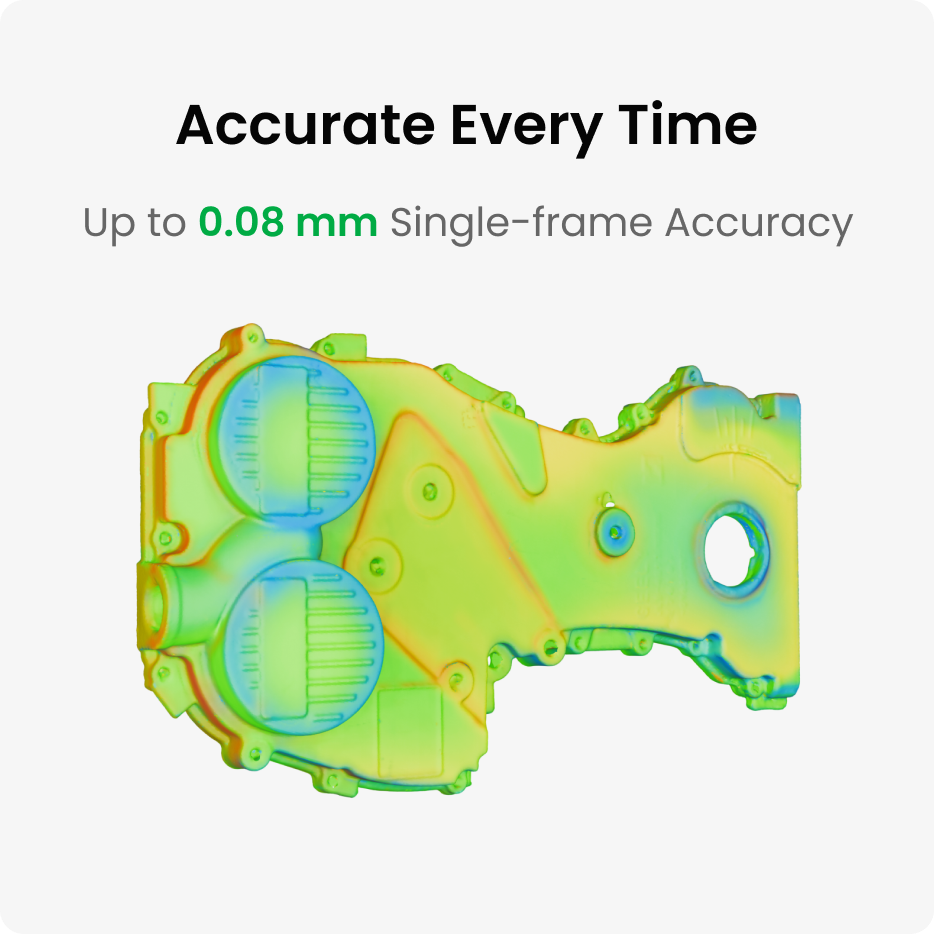

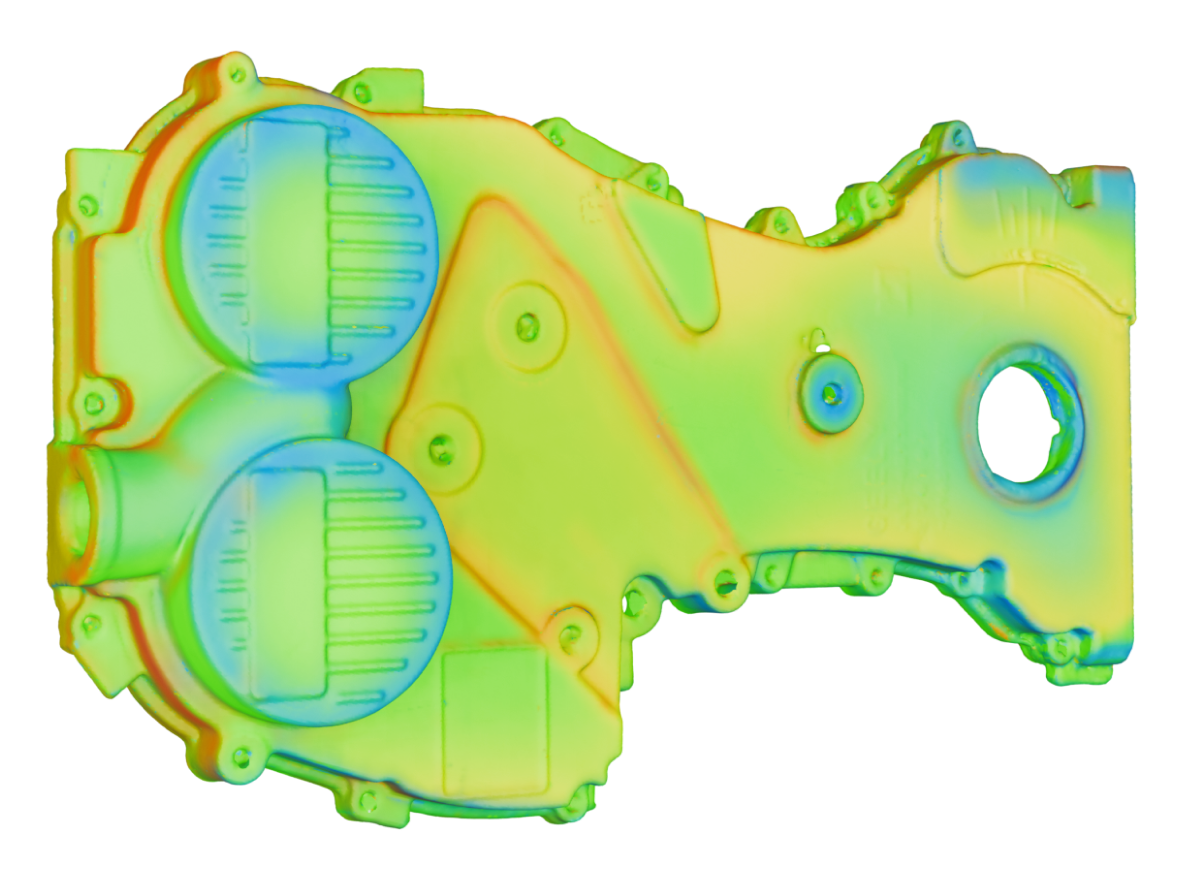

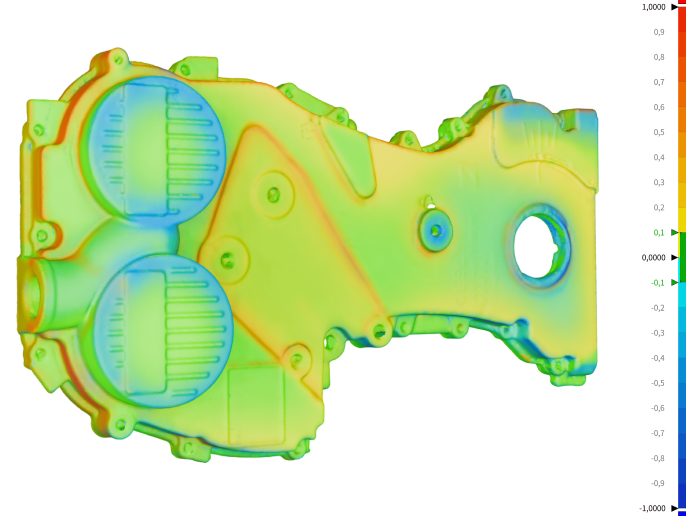

Refined Accuracy

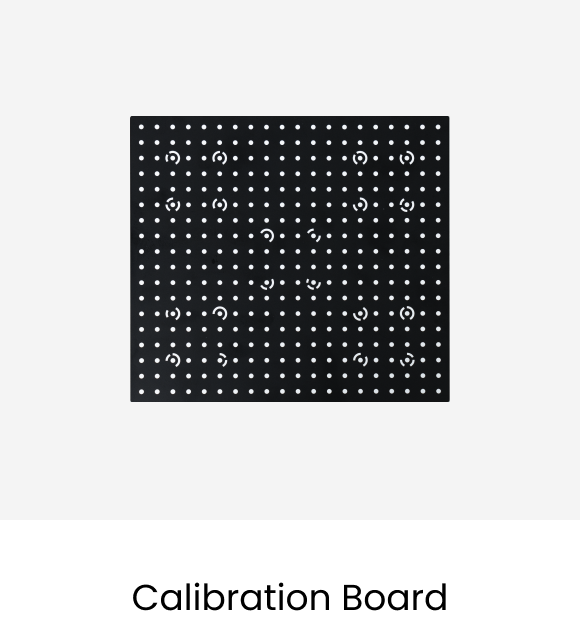

Create detailed 3D models with 20% more accuracy and precision*. The new high-precision calibration board, made using an advanced lithographic process, ensures your POP 3 Plus stays within 20 microns of accuracy.

*In comparison to POP 3

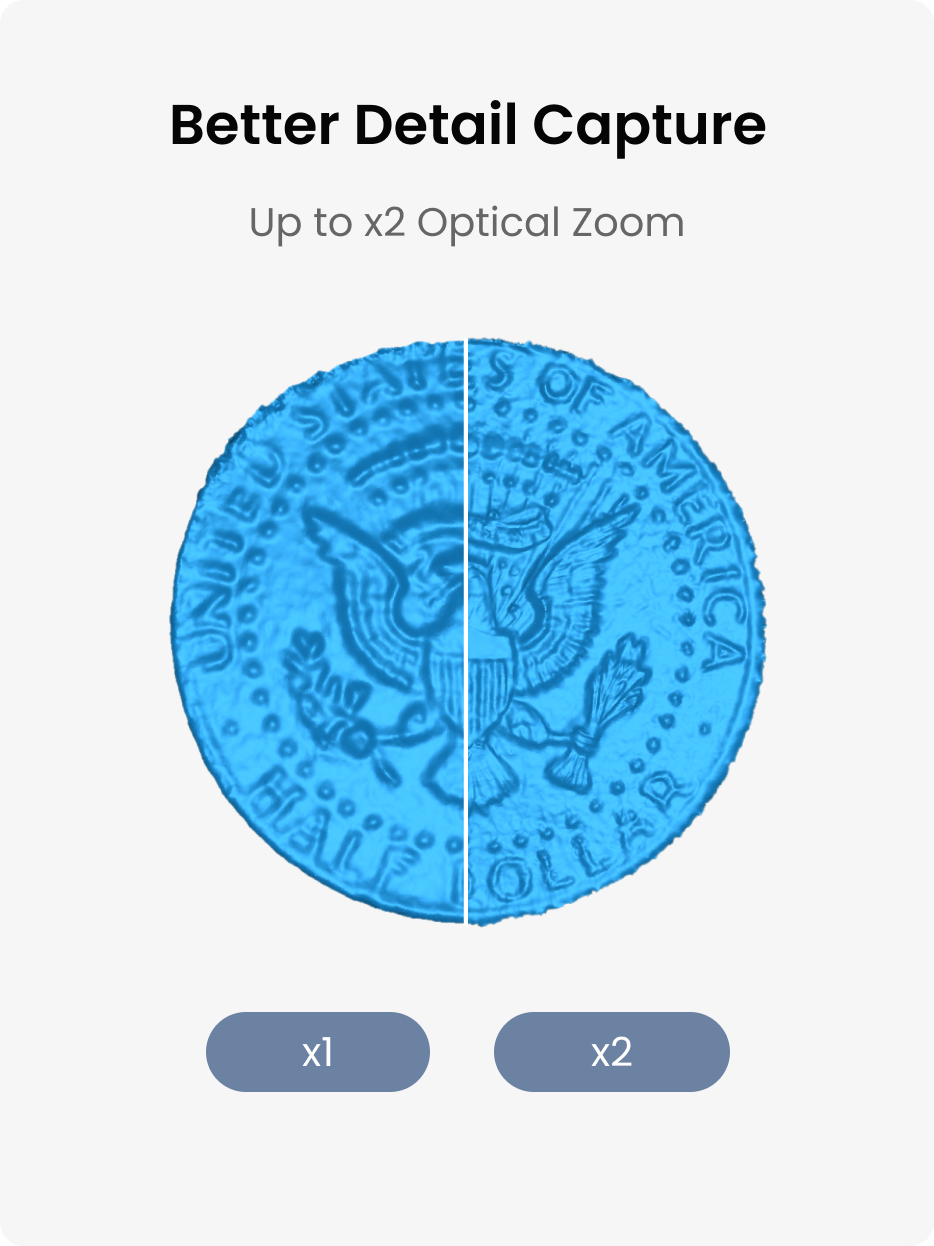

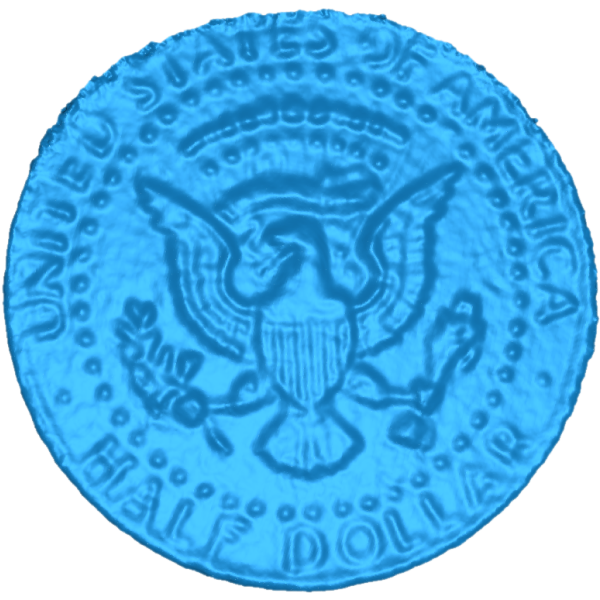

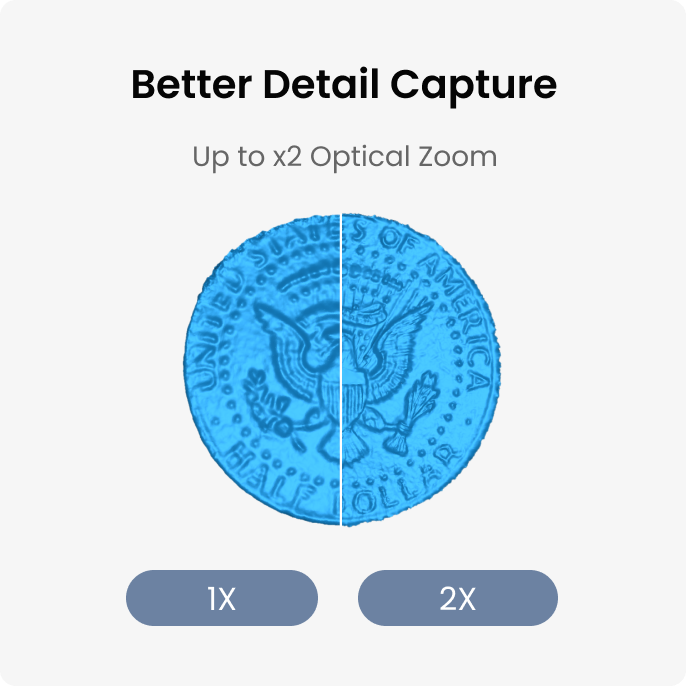

Focused Detail Capture

Capture surface detail with excellent fidelity with the projector's new optical zoom function, providing 1.5x and 2× zoom, focusing the scanner's structured light.

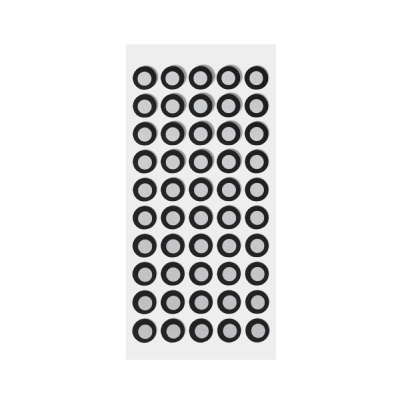

Improved Marker Tracking

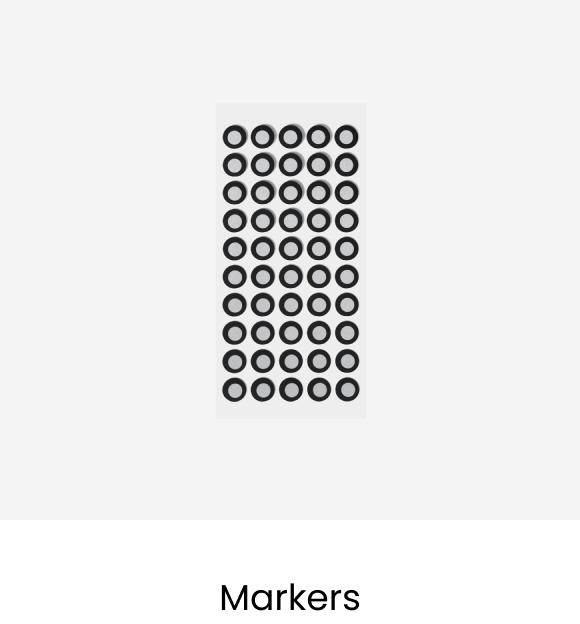

The new Global Marker tracking mode greatly enhances marker point tracking and improves point fusion accuracy and volumetric accuracy.

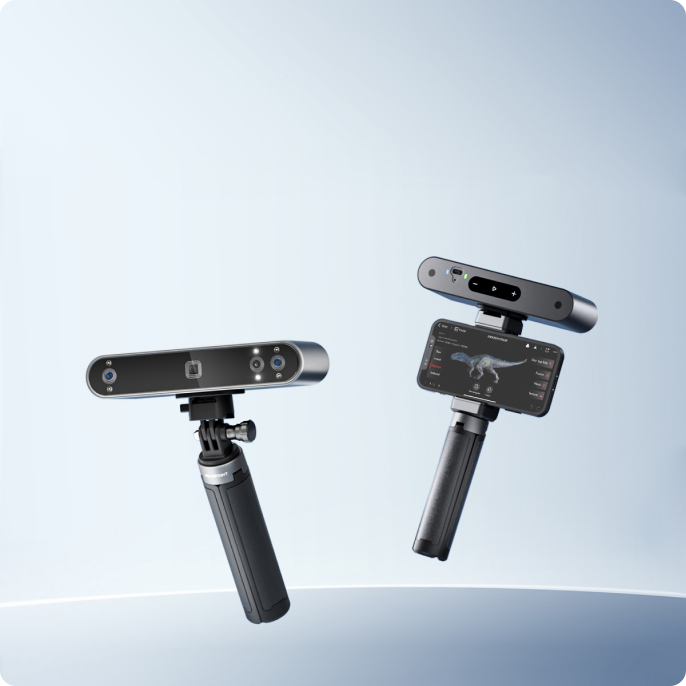

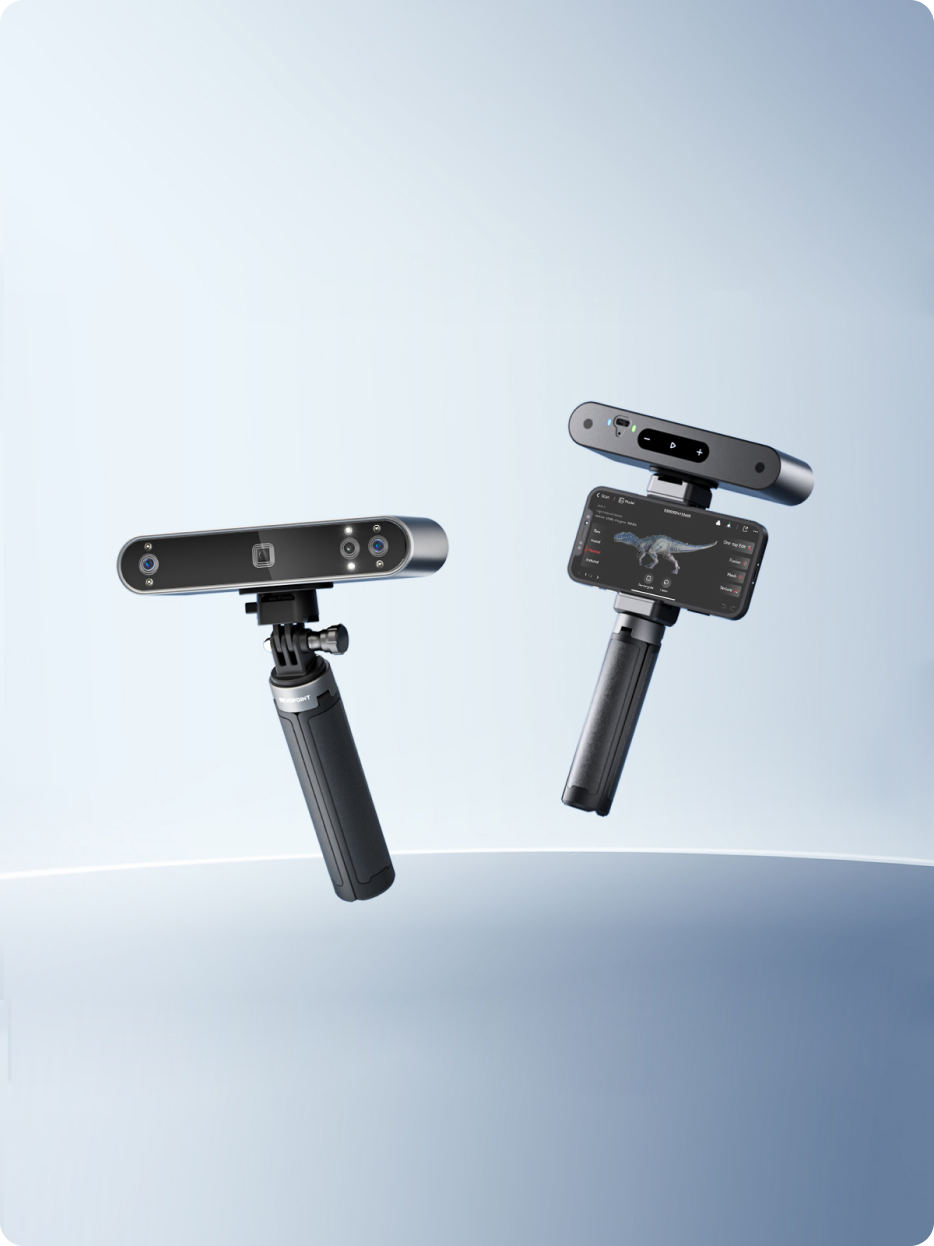

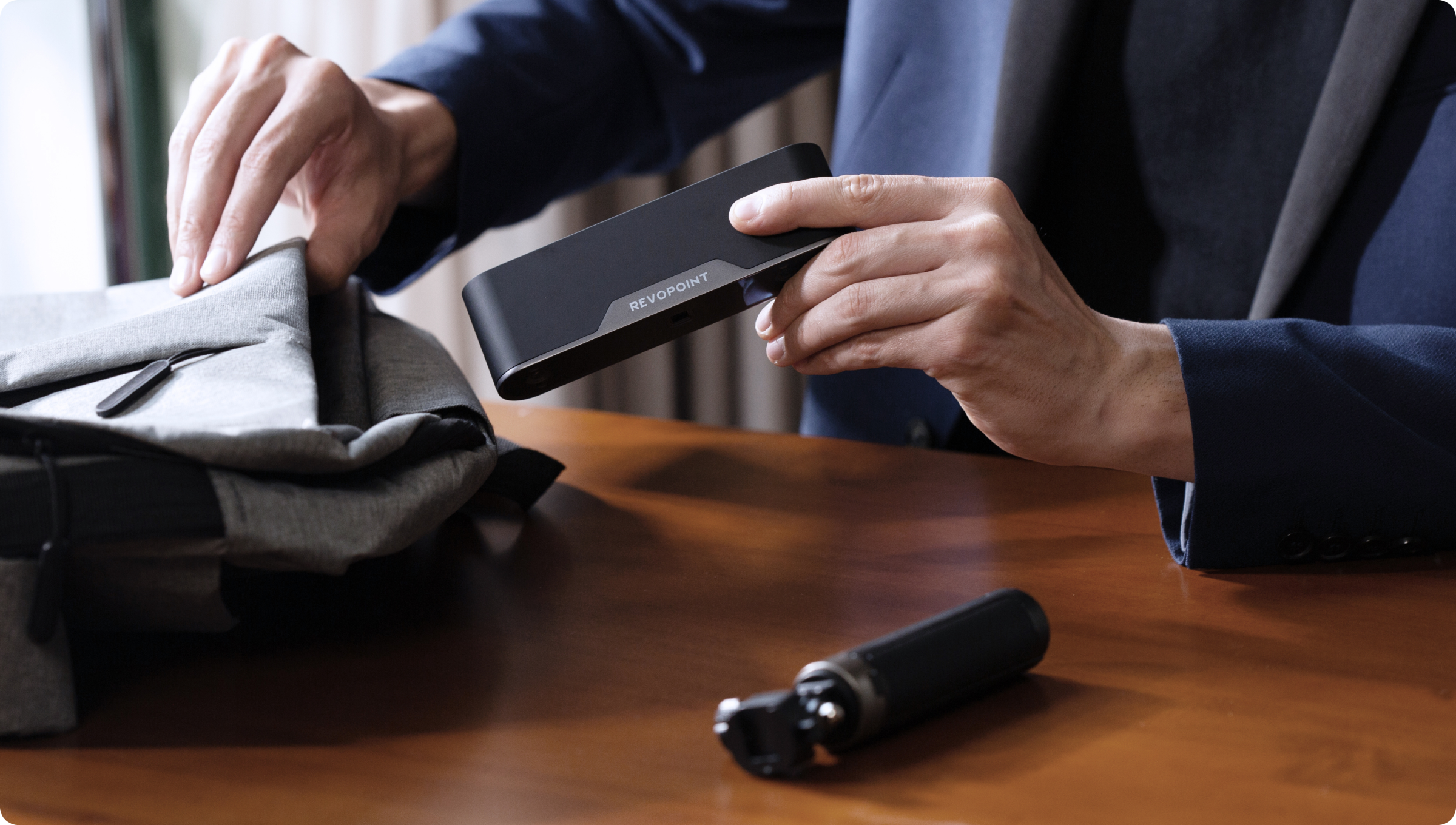

Convenient Mobile Scanning

Lightweight, compact, and compatible with mobile devices, POP 3 Plus is a powerful tool for flexible on-the-go scanning.

Only 190 g For convenient mobile scanning

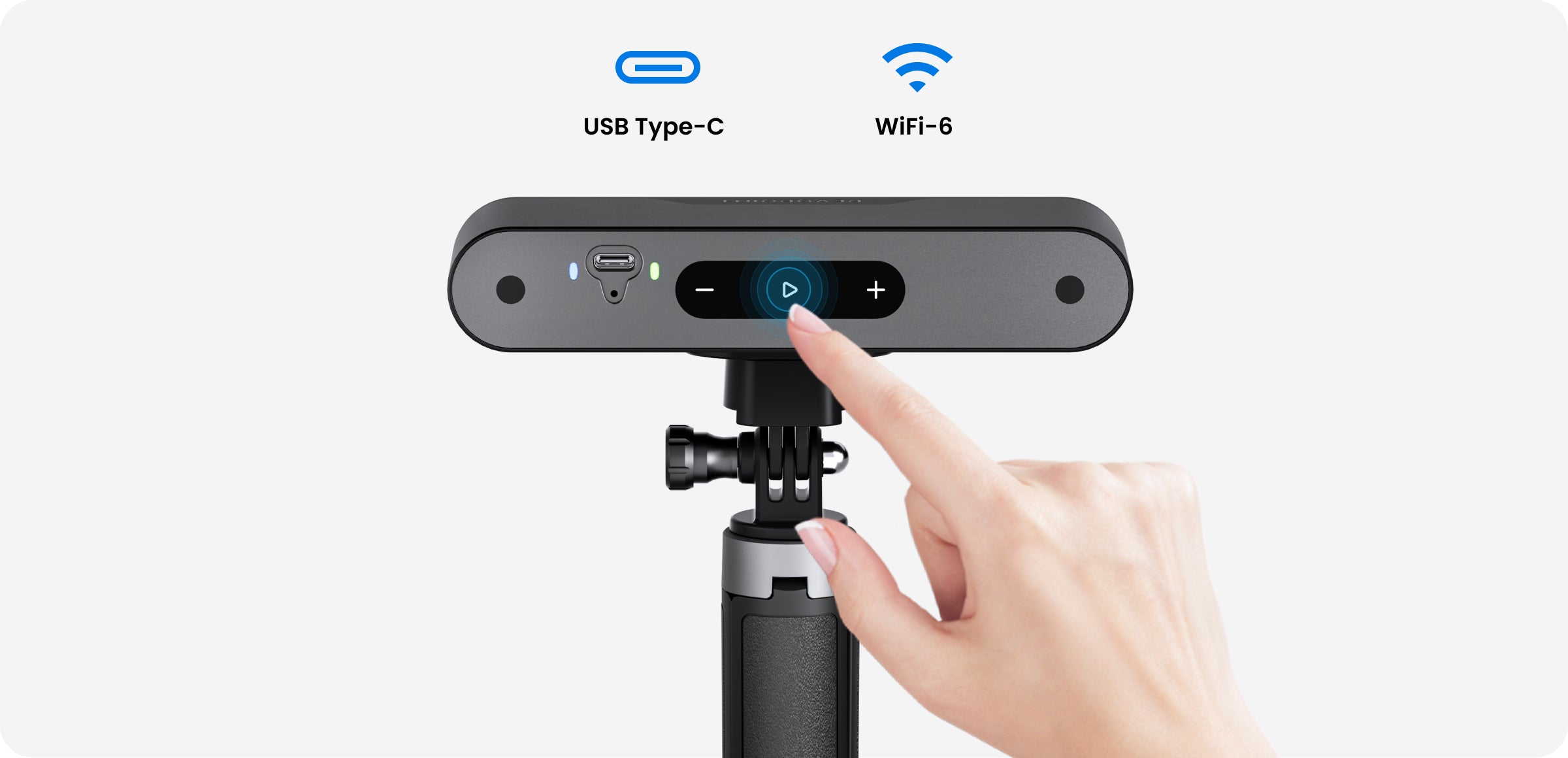

Multi-connectivity

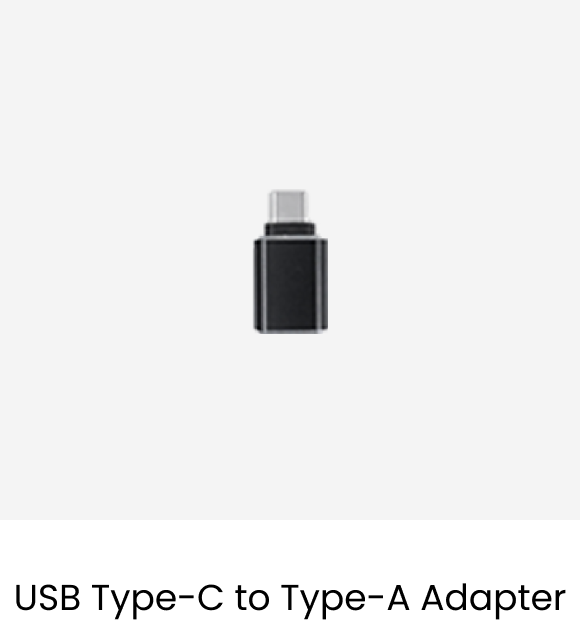

Connect POP 3 Plus to PCs or mobile devices over super-fast Wi-Fi 6 or plug-and-play USB Type-C*. Intuitively transfer projects created on mobile devices over Wi-Fi to Revo Scan (PC).

*iOS devices only support Wi-Fi connections

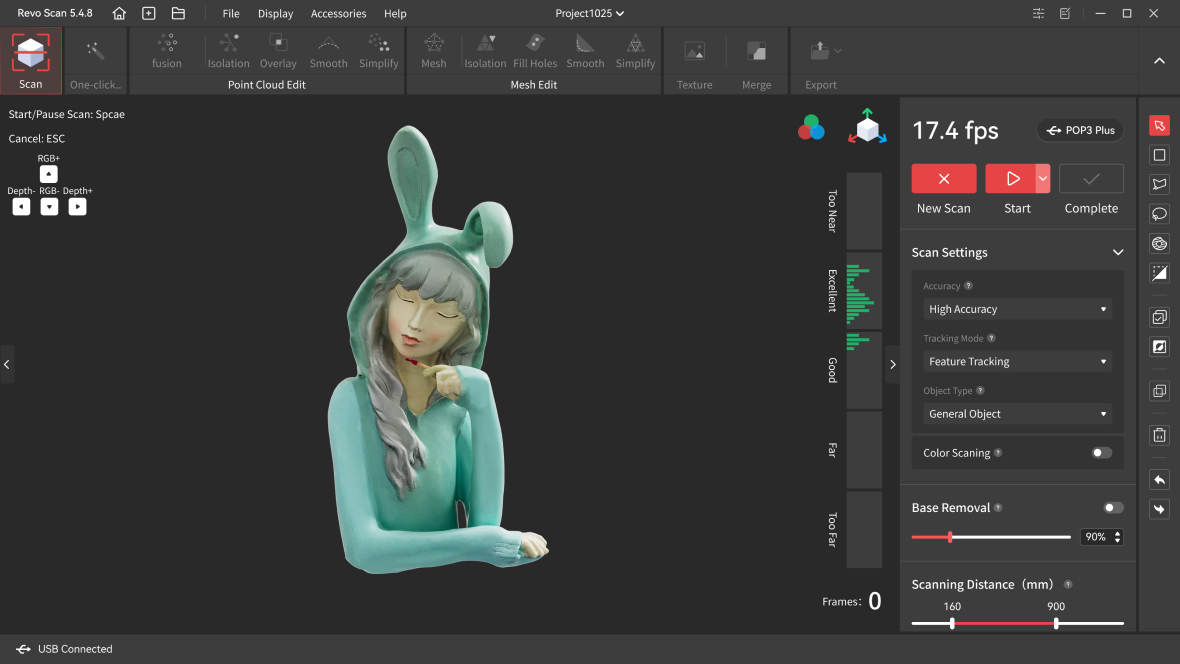

Powerful Software

Intuitively control your scans and edit your data using the free Revo Scan software. It's compatible with iOS, Android, Windows, and macOS devices and supports STL, PLY, OBJ, ASC, 3MF, GLTF, and FBX file formats for seamless workflows with most CAD, 3D modeling, and slicer software.

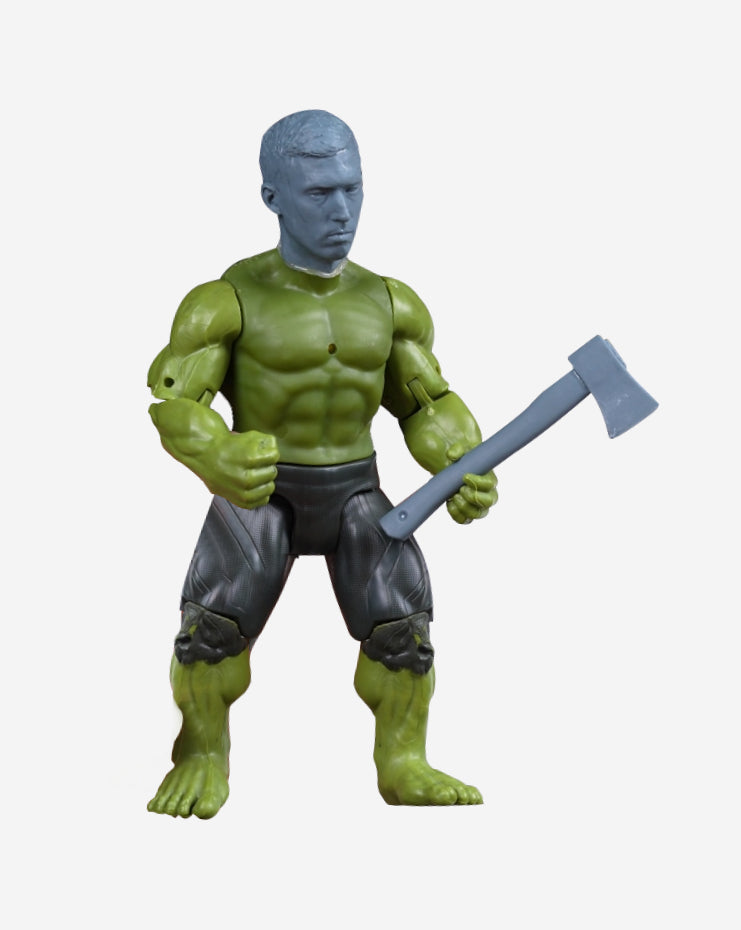

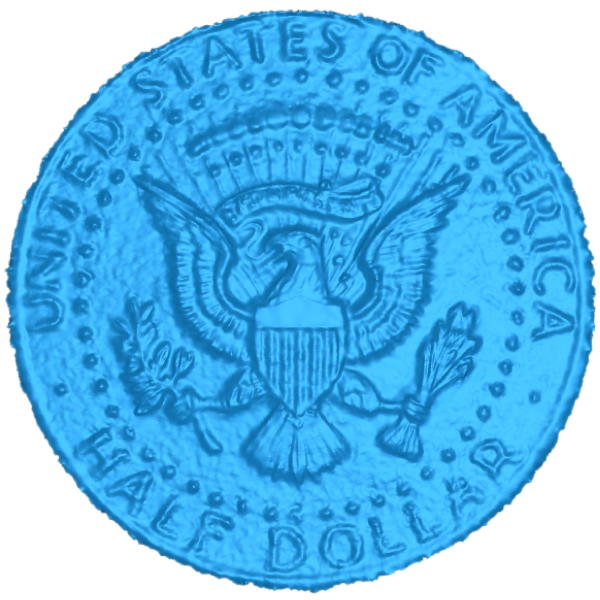

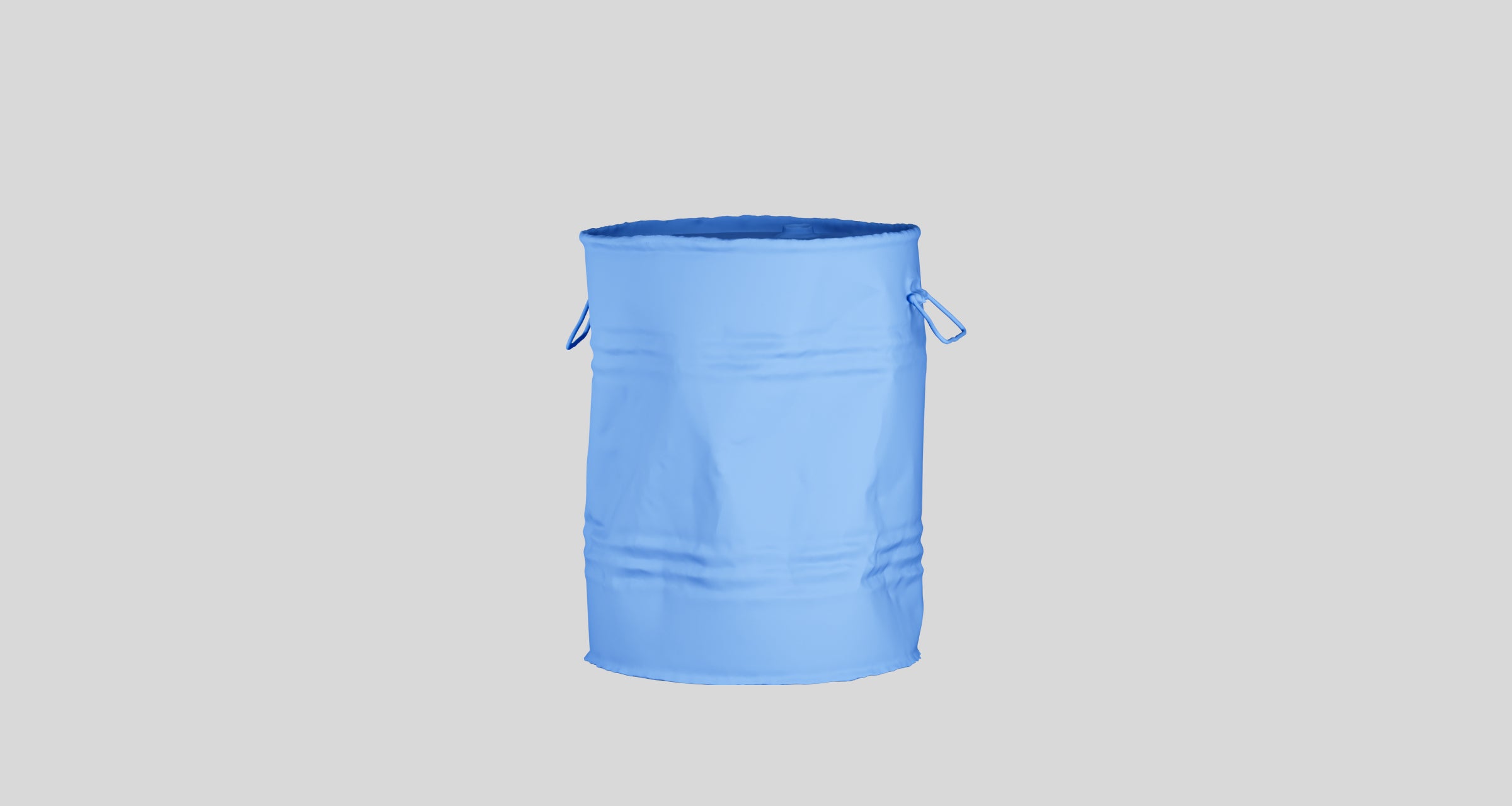

Models Made With POP 3 PLUS

Explore More

The Buzz on POP 3 Plus

".. the POP 3 Plus is well-suited for a variety of applications, including 3D printing, product design, animation, historic preservation, and reverse engineering."

"If you’re in the market for a lightweight 3D scanner with easy operation, consider this product."

Applications

3D Printing

Quickly 3D scan objects and transform them into 3D printable meshes with the POP 3 Plus's optimized hardware and software.

Product Design

Effortlessly generate rapid design iterations and seamlessly customize products with easily captured, accurate dimensional data.

3D Animation

Optimize your workflow by slashing 3D modeling and texturing time with accurate, full-color 3D scans, generating polished 3D assets ready for animation and game development.

Specifications

Product Name

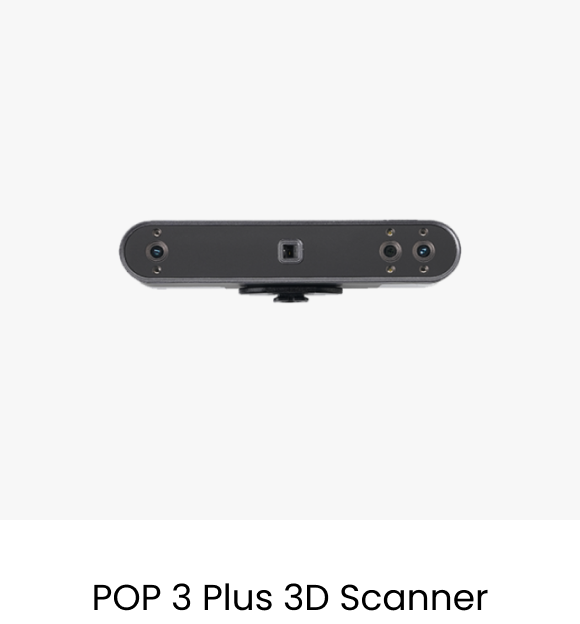

POP 3 Plus 3D Scanner

Technology

Dual-camera Infrared Structured Light

Single-frame Accuracy, up to

0.08 mm

Single-frame Precision, up to

0.04 mm

Scanning Speed，up to

18 fps

Fused Point Distance, up to

0.05 mm

Single Capture Area at Nearest Distance

61 x 68 mm at 150 mm

Single Capture Area at Furthest Distance

244 x 180 mm at 400 mm

Scanning Type

Handheld and Desktop

Working Distance

150 ~ 400 mm

Minimum Scan Volume

20 x 20 x 20 mm

Maxmium Scan Volume

2 x 2 x 2 m

Auxiliary Lighting

Infrared Fill Lights, White Flash LEDs

Angular Field of View (H x V）

40 x 25°

CPU

2 core, 1.6GHz

Position Sensors

9-axis IMU

Scanner Weight

190 g

Dimensions（L x W x H）

153 x 45 x 29 mm

Tracking Methods

Feature, Marker, Global Marker

Buttons

3

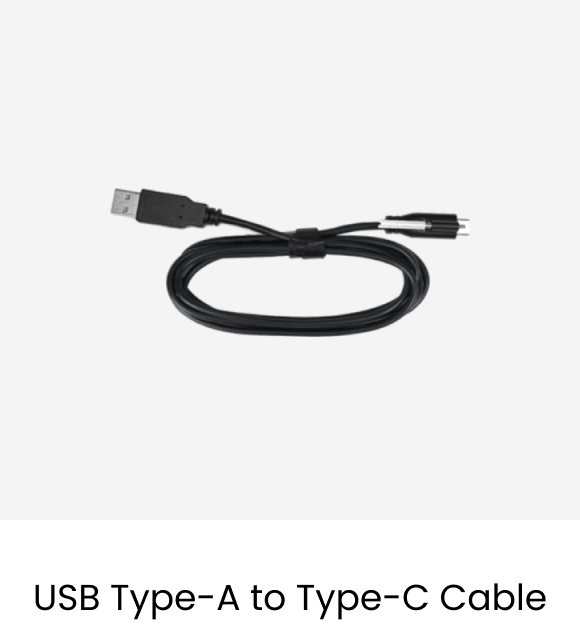

Connector Type

USB Type-C

Power Requirements

DC 5V, 1A

Wi-Fi

6

Bluetooth

4.1

Special Object Scanning

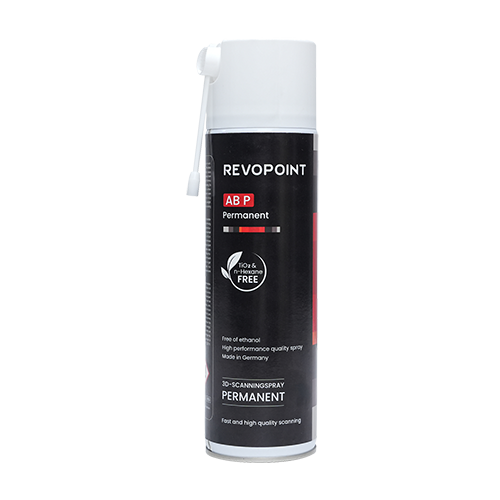

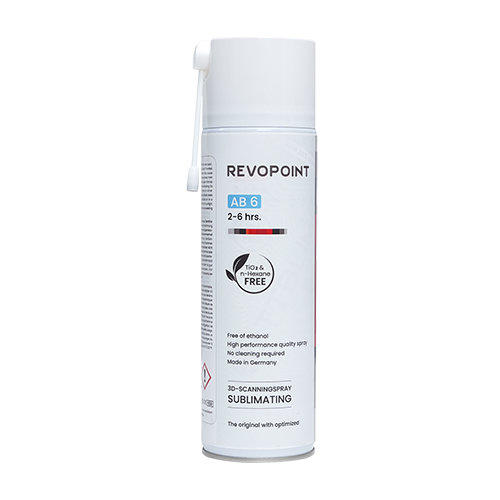

Use scanning spray for transparent, dark, or highly reflective objects

Scanning Environment

Indoors and Outdoors

Ready to Print 3D Models

Yes

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

User Recalibration

Yes

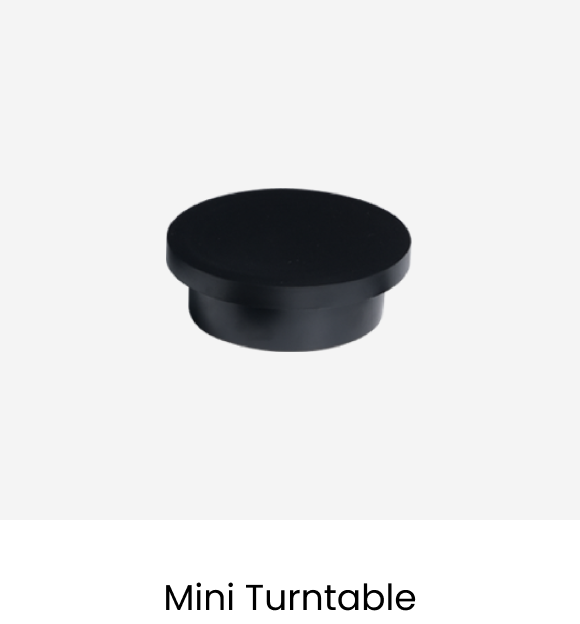

Supported Accessories

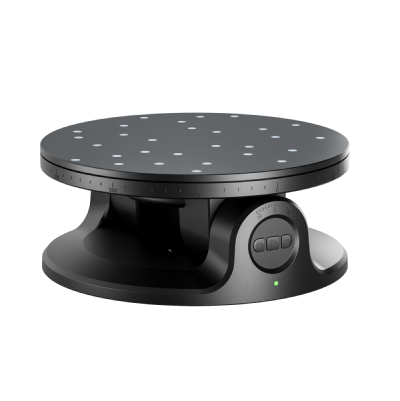

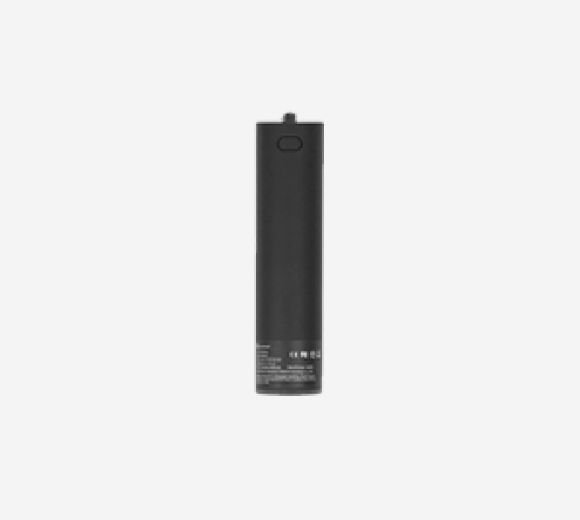

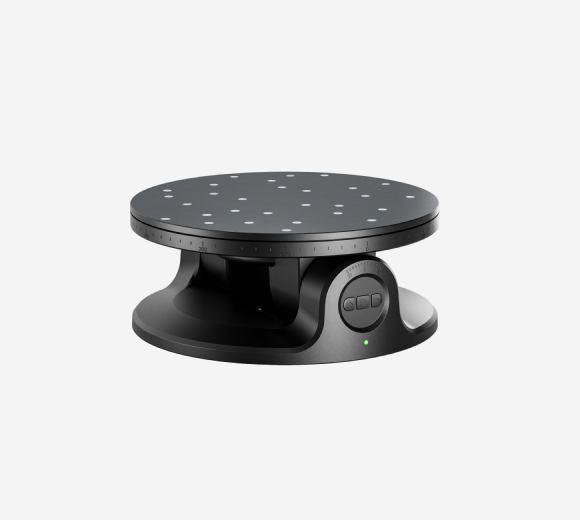

Large Turntable, Dual-axis Turntable, Handheld Stabilizer, Power Bank, Mobile Kit

Compatible Operating Systems

Windows 10/11(64-bit), Android, iOS, macOS 11.0 or better

Light Type

Class 1 Infrared Light (Eye Safe)

Minimum PC Requirements

macOS
CPU: M1 Pro or better; RAM ≥ 8GB
Windows
CPU: Intel i7 12th Gen or better; RAM ≥ 16GB

Recommended PC Requirements

macOS
CPU: M3 or better; RAM ≥ 8GB
Windows
CPU: Intel i9 11th Gen or better; RAM ≥ 32GB

Note:
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Outdoor scans should avoid direct sunlight.
3. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
5. The MIRACO series 3D scanners require no PC when scanning. But the PC requirements above should be followed if you connect the MIRACO to Revo Scan (PC) for more operations.
